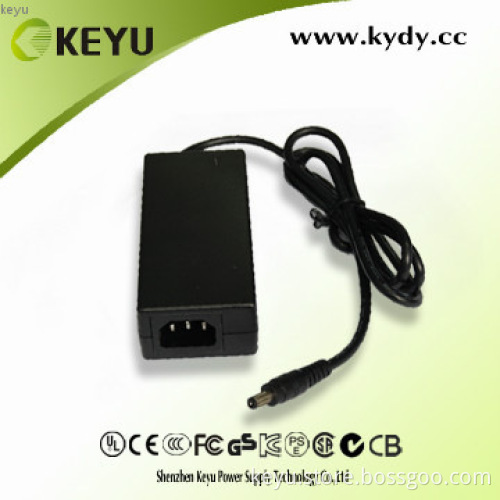

12v ac adapter for LED strip LCD display with CE
  • 12v ac adapter for LED strip LCD display with CE
12v ac adapter for LED strip LCD display with CE

12v ac adapter for LED strip LCD display with CE

Get Latest Price
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Product Description
Product Description
  • Product Details

Basic Specification

Color black
Warranty 1year
OEM&ODM welcome
Materials ROHS&REACH
Certificate CE
Output Current 5A
Output Frequency 50/60Hz
Input Voltage 220V
Output Power 51-100W
Output Type Single
Output Voltage 12V

Detail Description

12v ac adapter  for LED  strip LCD display  with CE
  • Input Voltage：100~240Vac(Range：90~264Vac).
  • Input Current：1.5A max.
  • Frequency：50/60Hz(Frequency range：47~63Hz).
  • Output voltage：9.0-30V.
  • Output current：0-5A.
  • Ripple & Noise：200mV max
  • Power consumption at no load：0.3W max.
  • Conversion efficiency：〉80%
  • Voltage regulation/Load regulation：±5%
  • Hi-pot test： 3000 VAC/1min/5mA
  • Leakege current： 0.25mA max.@240 VAC
  • With Over-current,Over-voltage,Over-temperature, Short-circuit protection function
  • Operating temperature：0~40℃
  • Storage Humidity：5~95% RH
  • Safety standard：UL/EN60950/GB4943
  • EMC standards：EN55022 class B/FCC Part 15 class B;EN55024/A1:2001/EN61000
Applications
  • Wireless communication electronics
  • Network hardware
  • Persional digitals
  • Audio&Video devices
  • Medical equipments
  • Home Appliances
  • LED,LCD
MODEL NO Input Voltage
(Vac)		 Input Frequency
(Hz)		  Output voltage
(Vdc)		 Output  Current
(A)		 Certificate
 KA06-090YYYYA/B 100-240(AC) 50/60   (Hz) 9.0(VDC) 0-5A CE
 KA06-100YYYYA/B 100-240(AC) 50/60   (Hz) 10.0(VDC) 0-5A CE
 KA06-110YYYYA/B 100-240(AC) 50/60   (Hz) 11.0(VDC) 0-5A CE
 KA06-120YYYYA/B 100-240(AC) 50/60   (Hz) 12.0(VDC) 0-5A CE
 KA06-130YYYYA/B 100-240(AC) 50/60   (Hz) 13.0(VDC) 0-4.9A CE
 KA06-140YYYYA/B 100-240(AC) 50/60   (Hz) 14.0(VDC) 0-4.5A CE
 KA06-150YYYYA/B 100-240(AC) 50/60   (Hz) 15.0(VDC) 0-4.2A CE
 KA06-160YYYYA/B 100-240(AC) 50/60   (Hz) 16.0(VDC) 0-4A CE
 KA06-170YYYYA/B 100-240(AC) 50/60   (Hz) 17.0(VDC) 0-3.8A CE
 KA06-180YYYYA/B 100-240(AC) 50/60   (Hz) 18.0(VDC) 0-3.6A CE
 KA06-190YYYYA/B 100-240(AC) 50/60   (Hz) 19.0(VDC) 0-3.42A CE
 KA06-200YYYYA/B 100-240(AC) 50/60   (Hz) 20.0(VDC) 0-6.25A CE
 KA06-220YYYYA/B 100-240(AC) 50/60   (Hz) 22.0(VDC) 0-2.95A CE
 KA06-230YYYYA/B 100-240(AC) 50/60   (Hz) 23.0(VDC) 0-2.76A CE
 KA06-240YYYYA/B 100-240(AC) 50/60   (Hz) 24.0(VDC) 0-2.7A CE
 KA06-250YYYYA/B 100-240(AC) 50/60   (Hz) 25.0(VDC) 0-2.6A CE
 KA06-260YYYYA/B 100-240(AC) 50/60   (Hz) 26.0(VDC) 0-2.5A CE
 KA06-270YYYYA/B 100-240(AC) 50/60   (Hz) 27.0(VDC) 0-2.4A CE
 KA06-280YYYYA/B 100-240(AC) 50/60   (Hz) 28.0(VDC) 0-2.3A CE
 KA06-290YYYYA/B 100-240(AC) 50/60   (Hz) 29.0(VDC) 0-2.2A CE
 KA06-300YYYYA/B 100-240(AC) 50/60   (Hz) 30.0(VDC) 0-2.15A CE


Type designation KA06-XXXYYYYA/B series(\"XXX\" 090-300 digits representing the output voltage 9.0-30Vdc,\'\"YYYY\" 0000-5000 digits representing the output current0A-5A),as A represents the (Class I )Power adapters,B represents the( Class II) Power adapters.










As a leading manufacturer of switching power supplies,we supply AC/DC adapter,desktop power adapter, wall mount adapter, LED power supply, security power adapter, USB car charger, USB power adapter .

If you are interested in KY`s products,welcome to contact us for more details!

Contact name: Vicky Lan
Skype: colina2098
Mobile: +86-13824301593
Tel:+86-755-27826629 Ext:6013
Fax:+86-755-27827839
Website: www.kydy.cc

Additional Information

Payment Terms L/C, T/T, D/P, Western Union
Minimum Order 1000
Lead Time / Delivery Time 20 Day(s)
Sample Available YES
Delivery Details 20DAYS lead time upon receipt of your confirmation
Loading Info By sea, by air,  by express.According to clients requirements and clients\' customs policy.We guarantee to give the most economic and save delivery.
Packing Info Inner packing: White box + Transparent poly bag. Outer packing: Carton 50pcs/carton in size 460*420*233mm
Target Market(s) North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Middle East & South Asia, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East
