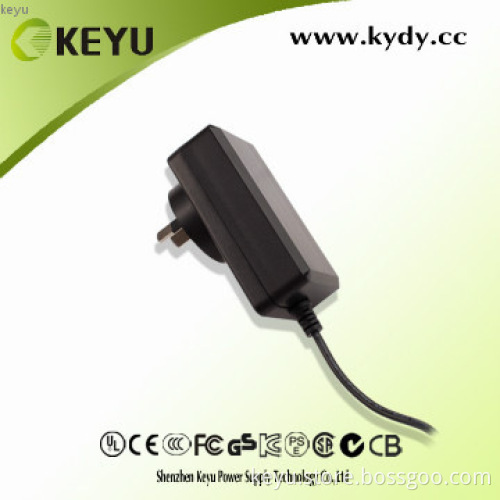

12V power adapter
  • 12V power adapter
12V power adapter

12V power adapter

Get Latest Price
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Product Description
Product Description
  • Product Details

Basic Specification

black white
WARRANTY 1YEAR
SAFETY CE/GS/FCC/KC/PSE/3C/CB
OEM&ODM welcome
Design protable
Usage Electronic product, Game Player, Laptop, Linear, Mobile Phone, Other, Power, Switching
Zone Of Application China
Connect Type Plug In
Output Type DC

Detail Description

  • Input Voltage：100~240Vac(Range:90~264Vac).
  • Input Current：0.5A max.
  • Frequency：50/60Hz(Frequency range：47~63Hz).
  • Output voltage：5.0-24V.
  • Output current：0-3A.
  • Ripple & Noise：150mV max
  • Power consumption at no load：0.3W max.
  • Conversion efficiency：〉75%
  • Voltage regulation/Load regulation：±5%
  • Hi-pot test:3000 VAC/1min/5mA
  • Leakege current： 0.25mA max.@240 VAC
  • With Over-current,Over-voltage,Over-temperature, Short-circuit protection function
  • Operating temperature：0~40℃
  • Safety standard：UL/EN60950/GB4943
  • EMC standards：EN55022 class B/FCC Part 15 class B;EN55024/A1:2001/EN61000

MODEL NO Input Voltage
(Vac)		 Input Frequency
(Hz)		 Output voltage
(Vdc)		 Output Current
(A)		 Certificate
KA03-050YYYY 100-240(AC) 50/60   (Hz) 5.0(VDC) 0-3A CE,UL,FCC,GS,PSE,KC,CB,CCC
KA03-060YYYY 100-240(AC) 50/60   (Hz) 6.0(VDC) 0-2.5A CE,UL,FCC,GS,PSE,KC,CB,CCC
KA03-070YYYY 100-240(AC) 50/60   (Hz) 7.0(VDC) 0-2A CE,UL,FCC,GS,PSE,KC,CB,CCC
KA03-080YYYY 100-240(AC) 50/60   (Hz) 8.0(VDC) 0-2A CE,UL,FCC,GS,PSE,KC,CB,CCC
KA03-090YYYY 100-240(AC) 50/60   (Hz) 9.0(VDC) 0-2A CE,UL,FCC,GS,PSE,KC,CB,CCC
KA03-100YYYY 100-240(AC) 50/60   (Hz) 10.0(VDC) 0-1.8A CE,UL,FCC,GS,PSE,KC,CB,CCC
KA03-110YYYY 100-240(AC) 50/60   (Hz) 11.0(VDC) 0-1.6A CE,UL,FCC,GS,PSE,KC,CB,CCC
KA03-120YYYY 100-240(AC) 50/60   (Hz) 12.0(VDC) 0-1.5A CE,UL,FCC,GS,PSE,KC,CB,CCC
KA03-130YYYY 100-240(AC) 50/60   (Hz) 13.0(VDC) 0-1.35A CE,UL,FCC,GS,PSE,KC,CB,CCC
KA03-140YYYY 100-240(AC) 50/60   (Hz) 14.0(VDC) 0-1.2A CE,UL,FCC,GS,PSE,KC,CB,CCC
KA03-150YYYY 100-240(AC) 50/60   (Hz) 15.0(VDC) 0-1.2A CE,UL,FCC,GS,PSE,KC,CB,CCC
KA03-160YYYY 100-240(AC) 50/60   (Hz) 16.0(VDC) 0-1.1A CE,UL,FCC,GS,PSE,KC,CB,CCC
KA03-170YYYY 100-240(AC) 50/60   (Hz) 17.0(VDC) 0-1.05A CE,UL,FCC,GS,PSE,KC,CB,CCC
KA03-180YYYY 100-240(AC) 50/60   (Hz) 18.0(VDC) 0-1A CE,UL,FCC,GS,PSE,KC,CB,CCC
KA03-190YYYY 100-240(AC) 50/60   (Hz) 19.0(VDC) 0-0.9A CE,UL,FCC,GS,PSE,KC,CB,CCC
KA03-200YYYY 100-240(AC) 50/60   (Hz) 20.0(VDC) 0-0.9A CE,UL,FCC,GS,PSE,KC,CB,CCC
KA03-210YYYY 100-240(AC) 50/60   (Hz) 21.0(VDC) 0-0.85A CE,UL,FCC,GS,PSE,KC,CB,CCC
KA03-220YYYY 100-240(AC) 50/60   (Hz) 22.0(VDC) 0-0.8A CE,UL,FCC,GS,PSE,KC,CB,CCC
KA03-230YYYY 100-240(AC) 50/60   (Hz) 23.0(VDC) 0-0.75A CE,UL,FCC,GS,PSE,KC,CB,CCC
KA03-240YYYY 100-240(AC) 50/60   (Hz) 24.0(VDC) 0-0.75A CE,UL,FCC,GS,PSE,KC,CB,CCC

Additional Information

Payment Terms L/C, T/T, Western Union
Minimum Order 1000
Lead Time / Delivery Time 20 Day(s)
Sample Available YES
Delivery Details 20DAYS UPON RECEIPT OF PAYMENT
FOB Port Shenzhen
Loading Info BY AIR OR BY SEA
Packing Info PE BAG + CARTON BOX
Target Market(s) North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Middle East & South Asia, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East
