CE FCC For set top box 12V 1.5A 18W AC DC switching power adapter
  • CE FCC For set top box 12V 1.5A 18W AC DC switching power adapter
CE FCC For set top box 12V 1.5A 18W AC DC switching power adapter

CE FCC For set top box 12V 1.5A 18W AC DC switching power adapter

Get Latest Price
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Product Description
Product Description
  • Product Details

Basic Specification

Connect Type SAA Plug in
Color Black
Certification CE/GS/FCC/KC/PSE/3C/CB
Warranty 1Year
OEM/ODM Welcome
Usage Electronic product, Game Player, Laptop, Linear, Mobile Phone, Other, Power, Switching
Zone Of Application European Union
Connect Type Plug In
Output Type DC

Detail Description

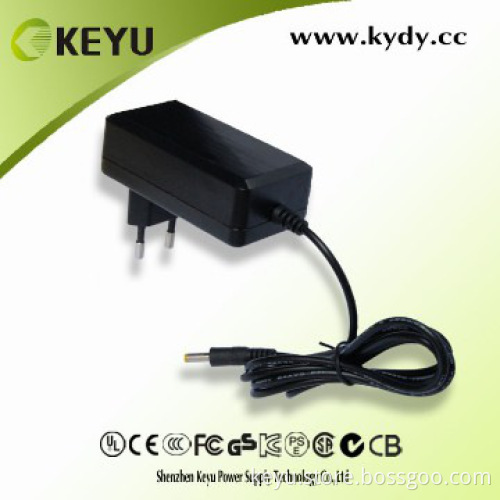

CE FCC For set top box 12V 1.5A 18W AC DC switching power adapter


Parameters :



  • Input Voltage:100~240Vac(Range:90~264Vac).
  • Input Current:0.5A max.
  • Frequency:50/60Hz(Frequency range:47~63Hz).
  • Output voltage:5.0-24V.
  • Output current:0-3A.
  • Ripple & Noise:150mV max.
  • Power consumption at no load:0.3W max.
  • Conversion efficiency:>=75%.
  • Voltage regulation/Load regulation:±5%.
  • CC/CV.
  • Hi-pot test: 3000 VAC/1min/5mA.
  • Leakege current: 0.25mA max.@240 VAC.
  • With Over-current,Over-voltage,Over-temperature,Short-circuit protection function
  • Operating temperature:0~40°C.
  • Safety standard:UL/EN60950/GB4943.
  • EMC standards:EN55022 class B/FCC Part 15 class B;EN55024/A1:2001/EN61000.



Products Series :



MODEL NO Input Voltage
(Vac)		 Input Frequency
(Hz)		 Output voltage
(Vdc)		 Output Current
(A)		 Certificate
KA03-050YYYY 100-240 50/60 5.0 0-3 CE,UL,FCC,GS,PSE,KC,CB,CCC
KA03-060YYYY 100-240 50/60 6.0 0-2.5 CE,UL,FCC,GS,PSE,KC,CB,CCC
KA03-070YYYY 100-240 50/60 7.0 0-2 CE,UL,FCC,GS,PSE,KC,CB,CCC
KA03-080YYYY 100-240 50/60 8.0 0-2 CE,UL,FCC,GS,PSE,KC,CB,CCC
KA03-090YYYY 100-240 50/60 9.0 0-2 CE,UL,FCC,GS,PSE,KC,CB,CCC
KA03-100YYYY 100-240 50/60 10.0 0-1.8 CE,UL,FCC,GS,PSE,KC,CB,CCC
KA03-110YYYY 100-240 50/60 11.0 0-1.6 CE,UL,FCC,GS,PSE,KC,CB,CCC
KA03-120YYYY 100-240 50/60 12.0 0-1.5 CE,UL,FCC,GS,PSE,KC,CB,CCC
KA03-130YYYY 100-240 50/60 13.0 0-1.35 CE,UL,FCC,GS,PSE,KC,CB,CCC
KA03-140YYYY 100-240 50/60 14.0 0-1.2 CE,UL,FCC,GS,PSE,KC,CB,CCC
KA03-150YYYY 100-240 50/60 15.0 0-1.2 CE,UL,FCC,GS,PSE,KC,CB,CCC
KA03-160YYYY 100-240 50/60 16.0 0-1.1 CE,UL,FCC,GS,PSE,KC,CB,CCC
KA03-170YYYY 100-240 50/60 17.0 0-1.05 CE,UL,FCC,GS,PSE,KC,CB,CCC
KA03-180YYYY 100-240 50/60 18.0 0-1 CE,UL,FCC,GS,PSE,KC,CB,CCC
KA03-190YYYY 100-240 50/60 19.0 0-0.9 CE,UL,FCC,GS,PSE,KC,CB,CCC
KA03-200YYYY 100-240 50/60 20.0 0-0.9 CE,UL,FCC,GS,PSE,KC,CB,CCC
KA03-210YYYY 100-240 50/60 21.0 0-0.85 CE,UL,FCC,GS,PSE,KC,CB,CCC
KA03-220YYYY 100-240 50/60 22.0 0-0.8 CE,UL,FCC,GS,PSE,KC,CB,CCC
KA03-230YYYY 100-240 50/60 23.0 0-0.75 CE,UL,FCC,GS,PSE,KC,CB,CCC
KA03-240YYYY 100-240 50/60 24.0 0-0.75 CE,UL,FCC,GS,PSE,KC,CB,CCC



Notes of Type Designation:

KA03-XXXYYYY series(\"XXX\" 050-240 digits representing the output voltage 5.0-24Vdc;\"YYYY\" 0-3000 digits representing the output current0A-3A)



Application &  Function :
  • Wireless communication electronics
  • Network hardware
  • Persional digital
  • Audio&Video devices
  • Medical equipments
  • Home Appliances

Packing Details :


Ctn. Model  Size / MM Apply To Quantity / unit Gross Weight / Kgs
A 570*340*197 Wall-mount Power Adapter 80~120 10~20
B 460*420*233 Desktop Power Adapter 40~60 8~16
  • Common Packing is 1 PE bag/ 1 Color box/ 1 carton Box
  • Customized Packing is welcome
Service Details :




Sample If necessary ,1-5 PCS samples to supply you free of charge.
Delivery time is 5-7 working days
Lead Time 15-20 days after payment . Always  depends on your order quantity
Payment 100% T/T, payment is not the problem
Trade terms FOB Shenzhen ,CIF destination port
Shipping

By sea, by air,  by express.

According to clients requirements and clients\' customs policy.
We guarantee to give the most economic and save delivery.
Warranty We can offer 12 months warranty and one and a half years for our VIP customers.
QC Each product will be 100% checked before shipment.
After-Services We promise to do our best to solve all of your problems.
OEM&ODM OEM design,OEM color,OEM packing ,ODM are highly welcome.



Our Advantages & Why Us ?



  • We are the manufacturer ,we are the source
  • With more than 10 years experience in this field.6000 Square Factory
  • Provide authorized certification
  • Top quality ,factory & Competitive price & promptly delivery
  • Quality control - 100% inspection before delivery etc
  • Free samples available (<=5 units)
  • OEM/ ODM Services are highly welcome
  • Flexible to meet dynamic requirements
Products Show:




SHENZHEN KEYU POWER SUPPLY TECHNOLOGY CO.,LTD

--- As a leading manufacturer of switching power supplies ,we supply AC/DC adapter ,desktop power adapter, wall mount adapter, LED power supply, security power adapter, USB car charger, USB power adapter .

---You could be assured about our quality. We are approved with ISO9001:2008 ,Our main products are complying with approvals including CE,UL,KC,PSE,FCC,CCC, GS,CB ,ROHS,Reach and etc.

-----------------------Welcome Inquiry ! -----------------------


Company Show:



If you are interested in KY`s products, Welcome inquiry for more details!

It will be our greatest honour to serve you. Thanks and best regards.


Contact name: Allen Chou

Email: Leave me a message below
Skype: mr.t1e
Mobile: +86-18926076610
Tel:+86-755-27826629 Ext:6044
Fax:+86-755-27827839
Website: www.kydy.cc

Additional Information

Payment Terms L/C, T/T, D/A, D/P, Credit Card, Western Union, Money Order, Paypal, Others
Minimum Order 1000
Lead Time / Delivery Time 20 Day(s)
Sample Available YES
Delivery Details 20Days Upon Receipt of Payment
FOB Port Shenzhen
Loading Info By air or ocean shipping as your requriments
Packing Info PE bag or white box,and export carton
Target Market(s) North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Middle East & South Asia, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East
