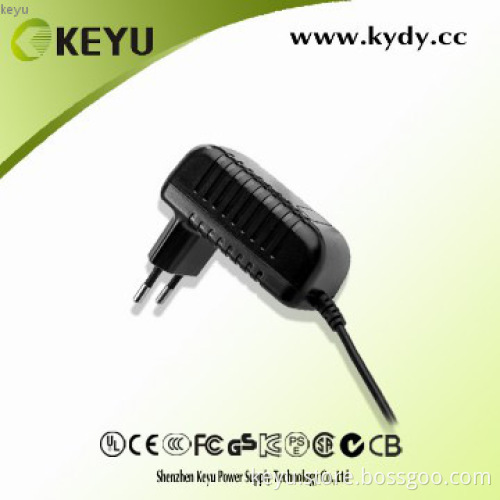

12W Plug-In Switching-Mode Power Adapter
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| Warranty | 1year |
|---|---|
| certificates | CE GS KC PSE CB 3C |
| black | white |
| OEM&ODM | welcome |
| Usage | LED strip, TV-BOX |
| Zone Of Application | China |
| Connect Type | Plug In |
| Output Type | DC |
Detail Description
12W Plug-In Switching-Mode Power Adapter
Features:
Products show：
As a leading manufacturer of switching power supplies,we supply AC/DC adapter,desktop power adapter, wall mount adapter, LED power supply, security power adapter, USB car charger, USB power adapter .
If you are interested in KY`s products,welcome to contact us for more details!
Contact name: Vicky Lan
Skype: colina2098
Mobile: +86-13824301593
Tel:+86-755-27826629 Ext:6013
Fax:+86-755-27827839
Website: www.kydy.cc
Features:
- Input Voltage：100~240Vac(Range:90~264Vac).
- Input Current：0.5A max.
- Frequency：50/60Hz(Frequency range:47~63Hz).
- Output voltage：5.0-24V.
- Output current：0-2A.
- Ripple & Noise：150mV max
- Power consumption at no load：0.3W max.
- Conversion efficiency：〉65%
- Voltage regulation/Load regulation：±5%
- Hi-pot test： 3000 VAC/1min/5mA
- Leakege current： 0.25mA max.@240 VAC
- With Over-current,Over-voltage,Over-temperature, Short-circuit protection function
- Operating temperature：0~40℃
- Safety standard：UL/EN60950/GB4943
- EMC standards：EN55022 class B/FCC Part 15 class B;EN55024/A1:2001/EN61000
Applications:
Products Series:
- Wireless communication electronics
- Network hardware
- Persional digitals
- Audio&Video devices
- Medical equipments
- Home Appliances
Products Series:
| MODEL NO | Input Voltage (Vac) |
Input Frequency (Hz) |
Output voltage (Vdc) |
Output Current (A) |
Certificate |
| KA00-050YYYY | 100-240(AC) | 50/60 (Hz) | 5.0(VDC) | 0-2.0A | CE |
| KA00-090YYYY | 100-240(AC) | 50/60 (Hz) | 9.0(VDC) | 0-1.3A | CE |
| KA00-120YYYY | 100-240(AC) | 50/60 (Hz) | 12.0(VDC) | 0-1.0A | CE |
| KA00-150YYYY | 100-240(AC) | 50/60 (Hz) | 15.0(VDC) | 0-0.8A | CE |
| KA00-180YYYY | 100-240(AC) | 50/60 (Hz) | 18.0(VDC) | 0-0.65A | CE |
Type designation:KA00-XXXYYYY series(\"XXX\" 050-240 digits representing the output voltage 5V-24Vdc;\"YYYY\" 0-2000 digits representing the output current0A-2.0A)
Products show：
As a leading manufacturer of switching power supplies,we supply AC/DC adapter,desktop power adapter, wall mount adapter, LED power supply, security power adapter, USB car charger, USB power adapter .
If you are interested in KY`s products,welcome to contact us for more details!
Contact name: Vicky Lan
Skype: colina2098
Mobile: +86-13824301593
Tel:+86-755-27826629 Ext:6013
Fax:+86-755-27827839
Website: www.kydy.cc
Additional Information
| Payment Terms | L/C, T/T, Money Order |
|---|---|
| Minimum Order | 1000 |
| Lead Time / Delivery Time | 20 Day(s) |
| Sample Available | YES |
| Delivery Details | 20days upon receipt of payment |
| FOB Port | Hong Kong,Shenzhen |
| Loading Info | by air or by sea |
| Packing Info | PE bag+carton box |
| Target Market(s) | North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Middle East & South Asia, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East |
