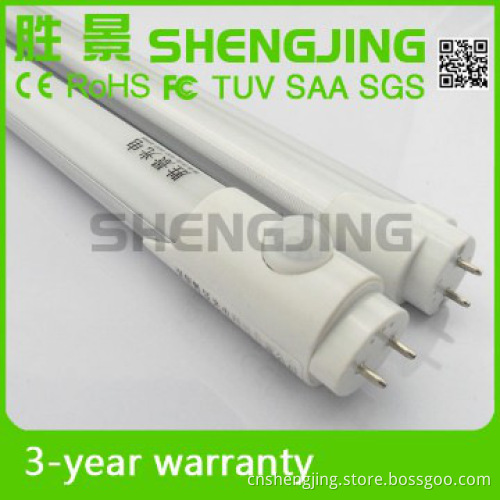

new smd3014 t8 led sensor tube 0.6m 1.2m 1.5m
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| LED qty | 168pcs |
|---|---|
| Luminous flux | 1620±5% |
| CRI | ≥75 |
| LED type | 2835/3014 |
| Life | 50000hours |
| Package | Yes |
| Light Source Chip | Epistar |
| Tube Diameter | T8 |
| Color Tones | Warm Color |
| Length | 120cm |
| Lamp Base | G13 |
| Voltage | 90-260V |
| Power | 18w |
| Illuminant | SMD |
Detail Description
This isolated driver PIR sensor smart led tube has infared sensor. It is widely used for garage, corridor, basement, warehouse, hospital and the places requiring 24hrs lighting and energy saving.
new smd3014 t8 led sensor tube 0.6m 1.2m 1.5m descriptions:
1. Induced by Infrared ray.
2. Cars or person coming to activate the Tube to full working load at power 18W.
3. While cars or person left the inductive area, 2~60 seconds later it will be at 3W or custom power ratings.
4. According the experience, use the infrared led tube can save more than 90% energy.
Specification of new smd3014 t8 led sensor tube 0.6m 1.2m 1.5m:
- Product Size: Φ28*L1198mm
- Base Type: G13
- Packing: 128*19.5*22cm(20pcs/ctn)
- G.W.：7.8Kg/ctn
- Beam Angle：1700
- Voltage：AC110/220V
- Frequency：50/60Hz
Item |
Unit |
Range of parameter |
LED Type |
- |
3014 |
LED Quantity |
Pcs |
168 |
Luminous flux |
LM |
1440±5％ |
Power |
W |
18±1 |
Power Factor |
- |
≥0.9 |
Time delay |
S |
30-60 |
Sensing distance |
m |
6-12m |
Working temperature |
℃ |
-20~+45 |
Storage temperature |
℃ |
-20~+65 |
Relative humidity |
RH |
10-90％ |
CRI |
Ra |
≥75 |
CCT |
K |
3000-6500 |
Lifespan |
Hrs |
50000 |
new smd3014 t8 led sensor tube 0.6m 1.2m 1.5m
Function
1. When no one or vehicles pass, infrared induction LED tube are dormant, each lamp power consumption is 3-5W, Not only meet the requirements of security monitoring lighting, but also save electricity at great extent, when someone or a vehicle passes, the low brightness of the infrared induction LED tube will be awakened automatically to lighten, power is 18W
2. Repeatable method: during the delay time, if some one are in the sensing distance, the bulb will keep light but it will turn off in 60 seconds after the one left( It will be automatically postponed to a delay period after it sense the human body every time and the delay time starting from the the end of last activity time)
Application
1. Replace incandescent light bulb and energy saving lamps directly.More energy saving, environment friendly and longer lifespan make it more efficiency
2. Widely used in Balcony, corridors, stairwells, parking lot, etc
Side view
Vertical illuminance diagram
Dimension drawing (Unit: mm)
Notice
1. LED fluorescent tube light should be used at indoor or non-waterproof place.
2. Used in the defined voltage input range.
3. Do not use fabric covering or other things when light working.
4. Any of the following situation occurs , please disconnect the power , and contact the original factory: power cable or power supply is damaged, liquid infiltration Products ( rain or flooding ), dropped or the casing damaged, other shows when it is in need of repair.
5. There is high voltage within the product, In order to avoid accidents which prohibit to disassemble by yourself.
Shengjing Led Company Information
Contact cell phone:+8613717118684
My skype:bessie.zhou88
Additional Information
| Payment Terms | T/T, Western Union, Paypal |
|---|---|
| Minimum Order | 1 |
| Lead Time / Delivery Time | 7 Day(s) |
| Sample Available | YES |
| Delivery Details | 3-7 days for samples, 15-20 days for mass production |
| FOB Port | Shenzhen |
| Loading Info | By Express,Air or Sea |
| Packing Info | 600MM Tube : 20pcs/CTN,67*21*25CM1200MM Tube : 20pcs/CTN,129*21*25CM1500MM Tube : 20pcs/CTN,157*21*25CMTube protected by foam inside of the box,wood carton available |
| Target Market(s) | North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Middle East & South Asia, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East |
