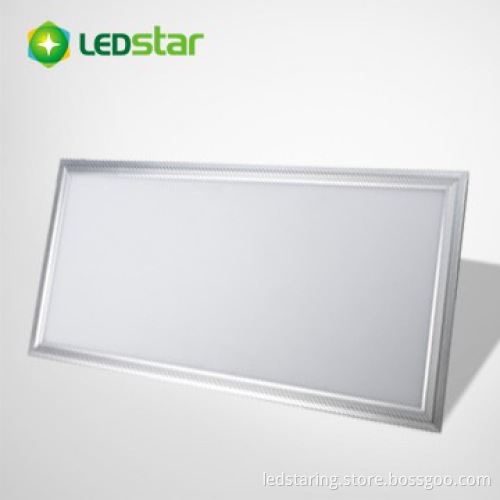

New Concept 36W 300mmx1200mm LED panel light
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| Led type | Everlight Chip SMD2835/Sanan chip SMD2835 |
|---|---|
| Color index (CRI) | ≥85Ra |
| Voltage | 90-260V |
| Light Source | LED Lamp |
| Material | Acrylic, Aluminum, Aluminum Die Casting, PC, PMMA, Silicone |
| Application | Airport, Bathroom, Bathroom Room, Bedroom, Car Park, Church, Cinema, Gallery, Garage, Hospital, Hotel, Kitchen, Meeting Room, Museum, Office, Restaurant, School, Shopping Mall, Sitting Room |
Detail Description
Product Features:
1.Adopt to Aluminum frame(width:18mm).
2.Imported MITSUBISHI LGP,light transmitance reach 92%,make sure uniform illumination and high lumen output.
3.Put silicon(grey)at the four corners,no light leak.
4.Use Reflected Plate,only 1.8mm,instead of refelective film,improve light efficiency.
5.Thermal glue on the PCB,good heat dissipation.
6.The driver:PF:>0.95,Power Efficency:>90%,Constant Current can work stability,good compatibility,and also fire proof material for driver box,doulbe insulation for wires,make sure high safety.
2.Imported MITSUBISHI LGP,light transmitance reach 92%,make sure uniform illumination and high lumen output.
3.Put silicon(grey)at the four corners,no light leak.
4.Use Reflected Plate,only 1.8mm,instead of refelective film,improve light efficiency.
5.Thermal glue on the PCB,good heat dissipation.
6.The driver:PF:>0.95,Power Efficency:>90%,Constant Current can work stability,good compatibility,and also fire proof material for driver box,doulbe insulation for wires,make sure high safety.
7.No flickering & interference, instant soft start
8.Environment Friendly: No UV,IR radiation,No Mercury, No pollution
of the environment
Illuminant parameters:
| Power | 36W |
| Luminous Flux | 3060LM/2880LM |
| Color Temperature | warm white/nature white/white(2800K-6500K) |
| Input Voltage | AC85-265V，50/60HZ |
| CRI | ﹥85Ra or ﹥75Ra |
| PF | ﹥0.96 |
| LED Qtys | 192 leds |
| Material | Aluminum﹢PS+PMMA+Plastic |
| Outline Dimension | 295*1195*9mm |
| Light Guide Plate | MISTUBISHI |
| Chip | Epistar/Sanan(SMD2835) |
| LED Brand | Everlight |
| Lifetime | 50000hrs |
| Operating Environment | -20℃+50℃ |
| Warranty | 3 Years |
| Certification | CE∕ROHS |
Application: Office, hotel, restaurant,school, cafes, bar, warehouse lighting, supermarket, hospital,factory,institution building
Additional Information
| Payment Terms | L/C, T/T, Credit Card, Western Union, Money Order, Paypal, Others |
|---|---|
| Minimum Order | 50PCS |
| Lead Time / Delivery Time | 3 Day(s) |
| Sample Available | YES |
| Delivery Details | 1. Payment:T/T, Western Union.---Bulk Order T/T,30% deposit to start the production and the balance paid before shipment2. Sample orders:5-6 days .Bulk order(1000pcs or above):10-15days |
| FOB Port | Shenzhen |
| Loading Info | By air express→ DHL/FEDEX/UPSBy sea |
| Packing Info | 5 pieces/carton |
| Target Market(s) | North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East |
