AutoDiagnosticOBD Autel MaxiTPMS TS601 Car diagnose tool TS601 TPMS Service

Autel MaxiTPMS TS601 is professional TPMS diagnostic service tool in the world. TS601 TPMS service capable of fully diagnosing TPMS problems. Autel MaxiTPMS TS601 support free update on the internet.

Autel MaxiTPMS TS601 Programming and Coding Tool TPMS Activating Service

TS601 TPMS Activating Service highlight:

Multilingual support: English, French, and Spanish, etc.
One year free update on the internet via USB port

Autel MaxiTPMS TS601 is the most powerful TPMS diagnostic & service tool in the world capable of fully diagnosing TPMS problems as well as activating TPMS sensors and reprogramming the vehicle's ECU. Autel MaxiTPMS TS601 tool is the best solution for tire shops and automotive workshops to perform TPMS service.

Autel MaxiTPMS TS601 Features:

* Activates ALL magnetic, frequency and tire deflation triggered sensors using 125KHz continuous or modulated wave signals
* Receives both 315MHz and 433MHz signals
* Reads / writes sensor ID from vehicle ECU
* Reads / clears codes of TPMS system and resets malfunction indicator light
* Reads activated sensor data including sensor ID, tire pressure, temperature, battery condition, OE part number, relearn information
* Reads, records and playbacks TPMS live data, including tire pressure, signal status, temperature, battery status, etc.
* Retrieves TPMS ECU information
* Performs actuation tests and special functions
* Programs vehicle ECU to learn sensor IDs and positions
* Capable of programming single tires for Chrysler, Renault, and Citroen
* Checks Remote Keyless Entry (Key FOB) for transmissions
* Pre-selection process offers faster activation and diagnostics
* Provides visual and audible responses to confirm sensors are working properly
* On-screen code definitions
* Incredibly easy to use with intuitive navigation and step-by-step on-screen instructions
* Proper LF signal to prevent being fooled by other RF signals
* Built-in rechargeable Li-polymer battery
* Automatic power-off to preserve battery life
* Multilingual support: English, French, and Spanish, etc.
* One year free update on the internet via USB port
* Ergonomic design features strong housing and protective rubber boot

TPMS TS601 Service features:

Display TFT color display (320 x 240 dpi)
Power 3.7V Li-polymer battery
Operating Temperature 0 to 50°C (32 to 122 °F)
Storage Temperature -20 to 70°C (-4 to 158 °F)
LengthWidthHeight 202.2mm(7.96")106.7mm(4.20")37.7mm(1.48")

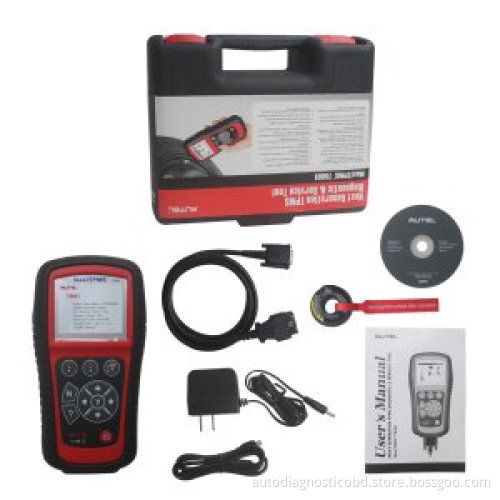

MaxiTPMS TS601 Package:

* 1 pc x MaxiTPMS TS601
* 1 pc x SD Card
* 1 pc x CD
* 1 pc x Charger
* 1 pc x Magnet
* 1 pc x OBDII Cable
* 1 pc x User's Manual
