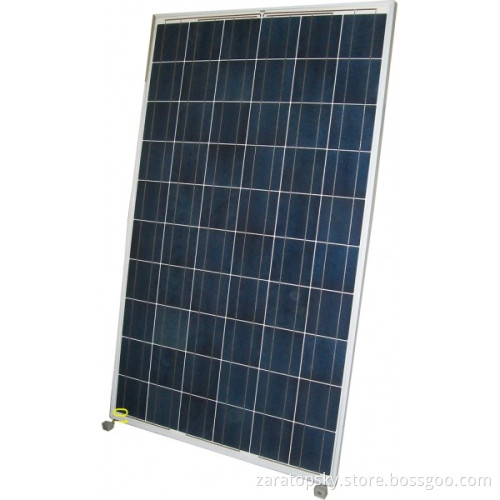

220w-235w solar panel PV poly crystalline for solar system 25 years lifespan

Poly-crystalline solar photovoltaic module

TP235 TP230 TP225 TP220

Maximum power

235W 230W 225W 220W

Power Tolerance

±5%

Maximum power voltage Vm

30V 30V 30V 30V

Maximum power current Imp

7.83A 7.67A 7.5A 7.33A

Open circuit voltage Voc

36V 36V 36V 36V

Short circuit current Isc

8.46A 8.28A 8.01A 7.91A

Maximum system voltage

1000 VDC

Size of cells

156x156mm

Quantity Type and Arrangement cells

60pcs Poly-crystalline silicon 6*10pcs

Cable type ,diameter and length

4m TUV certified 900mm

Type of connector

Compatible type lll

No of bypass diodes

3pcs

Temperature coefficient of Pm

-0.45%/

Temperature coefficient of Voc

-0.35%/

Temperature coefficient of Isc

+0.05%/

Standard test conditions

Am1.5 25 1000W/

Temperature range

-4085

Size of module (mm)

1650x992x45mm

Weight of module (Kg)

25

Packing (mm)

2PCS 40Kg/carton

Certificate

CE,IEC61215,RoHS

Warranty

10 years full product, 90% power of 10 years, 80% power of 25 years.
