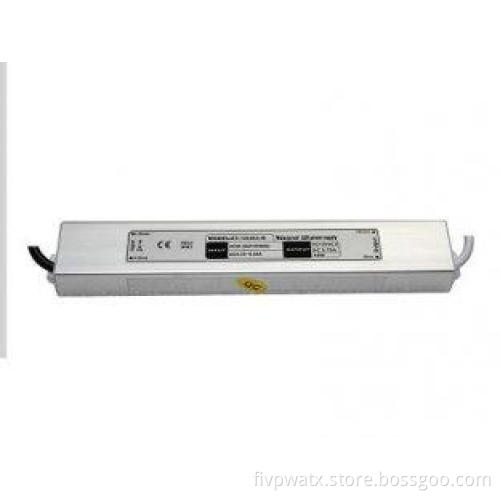

IP68 45W Waterproof 12 Volt LED Driver 3.75A For CCTV Camer
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shenzhen China |
|---|
Overload Protection Waterproof LED Driver Power Supply 45W 12V 3.75A IP68 EN55022 Class A
Competitive Advantage:
•IP67 protection grade
•100% load test, built-in EMI filters
•Full range of input voltage
•output voltage accurate and stable
•Output over-voltage, over-current and short-circuit protection
•Output low ripple and noise
•Two year warranty
•Average working no trouble ＞50, 000 hours
Application:
It’s suitable for an extremely wide range of applications, including:
LED, CCTV camera;
Communications and security products;
LED Strip Lighting/ LED lamp / LED Light, LED / LCD display.
Specifications:
Product Electric Parameters | |||
Input specification | Input voltage | AC90V---264V | |
Input frequency | 47-63Hz | ||
Input surge | 20A@120VAC 40A@230VAC | ||
Output specification | Start-up time | ≦1S (230V Input, Io=100%) | |
keep time | ≧20mS (230V Input, Io=100%) | ||
Voltage regulation | (full)≦0.5% | ||
Protection function | Overload protection | 105% - 150% rated power, automatic recovery | |
Over-voltage protection | 105% - 150% of the rated voltage | ||
Insulation intensity | Input---output | 1500VAC/1min | |
Input--ground | 1500VAC/1min | ||
Output---ground | 500VAC/1min | ||
Safety standards | According with GB4943, EN60950-1 ; EPA3050B:1996; EN1122:2001 ; EPA3052:1996; EPA3060A; EPA7196; EPA3540C;EPA8270C standards. | ||
E M C standards | According with EN55022 class A EN61347-2-13:2008 standards | ||
Environmental | working temperature | - 20 ° ~ 60 ° c / 20% ~ 90% RH (no frost) | |
Storage temperature | - 40 ° ~ 85 ° c / 10% ~ 95% RH (no frost) | ||
height above sea level | ≦2000M | ||
Structure | Size (mm) | 230(L)*40(W)*20(H) | |
Cooling method | Cooling method | Natural cooling air convection | |
Weight | 0.42KG/P | ||
