10kg Coffee Roaster/22LB Coffee Roaster
- Payment Type:
- T/T
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 40 Days
- Transportation:
- Ocean, Land
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | China |
|---|---|
| Productivity: | 50pcs/year |
| Supply Ability: | 50pcs/year |
| Payment Type: | T/T |
| Certificate: | CE ROHS IEC |
| Transportation: | Ocean,Land |
Product Description
Product Description

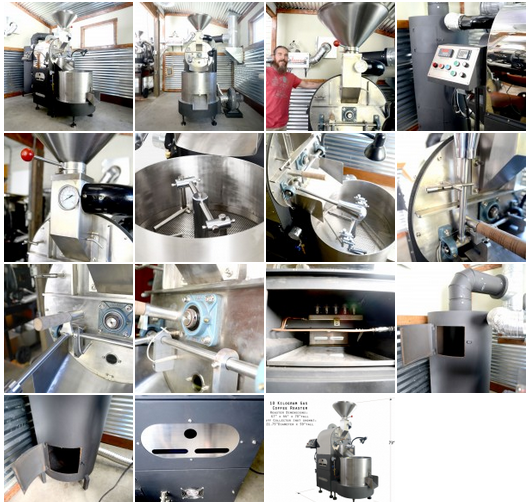

| NC-010 10kg Gas Coffee Roaster Parameters | |
| Roaster Dimensions: | 66.9×43.3×72.8 in (1700×1100×1850mm) |
| Roaster Weight: | 903.9lb (410kg) |
| Chaff Collector Dimension: | 21.7×59.1 in(550×1500mm) |
| Net/Gross Weight: | 1009.7/1102.3lb (458/500kg) |
| Crate Dimension(Three Crates): | 61.4×50.4×76.8lb (1560×1280×1950mm) |
| 55.9×41.7×47.2lb (1420×1060×1200mm) | |
| 63.4×31.1×35lb (1610×790×890mm) | |
| Drum Thickness: | 0.2 in (6mm) |
| Drum Diameter/Length: | 18.1/15.7 in (460/400 mm) |
| Drum Construction: | 430 stainless steel, welded |
| Cooling Tray Diameter: | 23.6 in (600mm) |
| Cooling Tray Stirring Arm Length: | 19.7 in (500mm) |
| Average Roasting Time: | 15 minutes batch |
| Production: | 66.1lb/hr,529.1lb/day (30kg/h, 240kg/day) |
| Roaster Voltage/Frequency: | Single phase 220v,15 amp service 50-60Hz |
| Step-up Transformer: | 120v to 220v, 1000 watt |
| Drum Motor | 400w |
| Exhaust Fan Motor: | 750w |
| Exhaust Fan Max. Airflow: | 260m³/h |
| Cooling Fan Motor: | 400w |
| Cooling Tray Stirring Motor: | 400w |
| Heating Mode: | Natural Gas or Propane |
| Max. BTU: | 75,000 |
| Burner Control: | Ball Valve |
| Gas Connection: | 3/8'' NPT |
| Typ. Chaff Collector Exhaust Temp: | 300F(during normal use) |
| Recommended Temp Controller Limit: | 455F (about 30 seconds into rolling second crack) |
| Max. Gas Usage | 3.3lb/hr (1.5kg/h) |
| USB Logging Interface: | Phidget 1048 |
| Logging Thermocouples: | BT,ET, incoming air |
