Dual-relay Waterproof Access Control Keypad
- Payment Type:
- T/T, Western Union, Paypal
- Incoterm:
- EXW
- Min. Order:
- 100 Piece/Pieces
- Min. Order:
- 100 Piece/Pieces
- Delivery Time:
- 5 Days
- Transportation:
- Ocean, Air
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 5000pcs per month |
| Supply Ability: | 5000pcs per month |
| Payment Type: | T/T,Western Union,Paypal |
| Incoterm: | EXW |
| Certificate: | CE, RoHS |
| Transportation: | Ocean,Air |

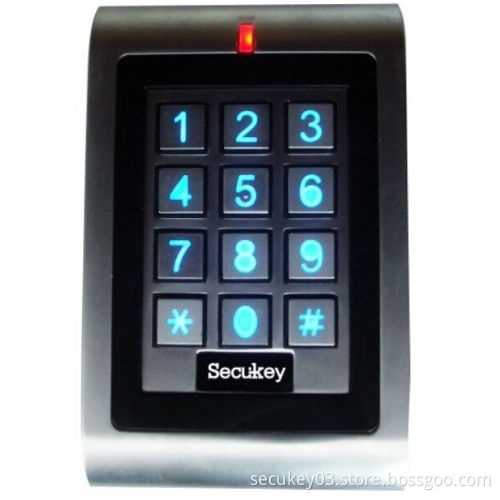

SK1 Dual-relay Waterproof Access Control Keypad
Main Features:
Waterproof(IP66)
Vandal Resistant Enclosure
Backlit Keypad
Multi-color LED status display
Two Programmable Relay Output
1100 Users (Card/PIN/ Card+PIN)
Card Block enrollment
Integrated Alarm Buzzer & Output
Low power consumption (55mA)
Anti-Tamper Alarm
Latch Mode to hold door or gate open
Relay 2 supports external door bell
12-24V DC/12-18V AC Power input
Specifications:
User Capacity: 1100 Cards/PINS
Zone 1: 1000, Zone 2: 100
Operating Voltage: 12~24V DC / 12-18V AC
Idle Current: 55mA
Active Current: 80mA
Keypad: 12 Key (3*4)
Proximity Card Reader: EM
Radio Technology: 125KHz Industry Standard Proximity Card
Read Range: 3-6cm
Wiring Connections: Electric Lock, Exit Button, DOTL, External Alarm, DoorBell
Relay: Two (NO, NC, COM)
Adjustable Relay Output Time: 1-99 Seconds (5 seconds default)
Adjustable Alarm Output Time: 1-3 minutes (1 minute default)
Lock Output Load: 3 Amp Maximum
Alarm Output Load: 3 Amp Maximum
Environment: Meets IP66
Operating Temperature:-30℃~60℃, or-22°F~140°F
Operating Humidity: 10% ~ 90% Non-Condensing
Physical: Zinc-Alloy Enclosure
Surface Finish: Powder Coat
Dimensions: L: 120* W: 76 * H: 25 (mm)
Unit Weight:600g
Shipping Weight: 700g
Warranty:
2 years
Certificate:
CE, RoHS approved
