Fingerprint/ PIN/ Card Access Control
- Payment Type:
- T/T, Western Union, Paypal
- Incoterm:
- EXW
- Min. Order:
- 100 Piece/Pieces
- Min. Order:
- 100 Piece/Pieces
- Delivery Time:
- 5 Days
- Transportation:
- Ocean, Air
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 3000pcs per month |
| Supply Ability: | 3000pcs per month |
| Payment Type: | T/T,Western Union,Paypal |
| Incoterm: | EXW |
| Transportation: | Ocean,Air |

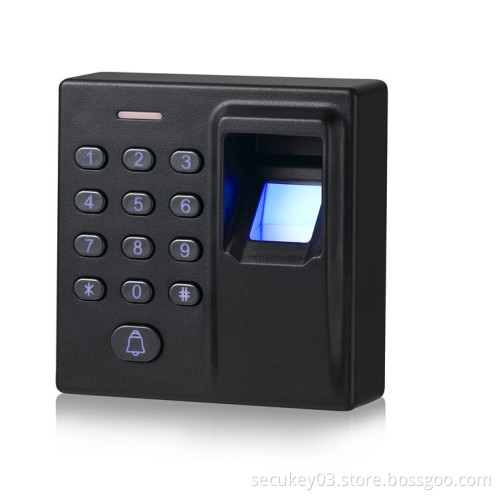

F6 Fingerprint/ PIN/ Card
Access Control
Main Features:
Standalone access control
User capacity: 500 card users, 500 fingerprint
users, 500PIN users
With Wiegand 26 output, can connect to any
third Wiegand 26 input controller
Support door bell function
Support USB downloading/uploading user
data
Operating temperature:-20℃ ~50℃
Specifications:
User Capacity: 1500
Fingerprint (500), Card (500), PIN (500)
Operation Voltage: +12V
Idle Current: ≤25mA
Active Current: ≤45Ma
Resolution: 500DPI
Identification time:＜1S
FAR: ＜0.0001%
FRR: ＜0.01%
Proximity Card Reader: Industry Standard 26 bits
Radio Technology: 125 KHz Industry ProximityEM Card
Read Range: 1~5cm
PIN Reader: 4~6 digits PIN
Wiring Connections: Relay Output, Exit Button,
DOTL, Alarm, Wiegand output, Door Bell
Communication: USB for downloading/uploading
Relay: One (NO, NC, Common)
Adjustable Relay Output Time: 1-99 Seconds (5
seconds default)
Lock Output Load: 2 Amp MaximumAlarm Output
Load: 5 Amp Maximum
Wiegand Interface: Wiegand 26 bits Format Output
Operating Temperature:-20℃~+50℃
Operating Humidity: 20%RH-90%RH
Dimensions:88mm*88mm*30mm
Unit Weight:350g
Shipping Weight:400g
