2013 New Aluminum Engineering, VGA TO DVI-D (24 +1) Converter

More renderings down

Fortunately real than VGA converter that supports Apple display, widely used in splicing screen, DVI matrix, projection, consoles, computers, etc. All DVI-D signal device, good compatibility!

VGA to DVI adapter, DVI-D converter supports 1920 * 1080,2013 new upgraded version of the project funds

VGA to DVI-D converter (Model kt-602): Along with the LCD and other digital flat panel display technology, the rapid development of digital video interface gradually been widely applied. The company developed the production of VGA to DVI-D converter (Model: KT602), completed the analog-to-digital video signal converter design. To function is to transfer out of the graphics card VGA analog video signal is directly converted into 24 +1 DVI-D digital video signal, access digital display device.
Widely used in multimedia applications, systems engineering, DVI output can be destructive fine display graphical text, for use in digital display, any display device with DVI interface. Maximum resolution to 1920 * 1080P/60Hz. (Note: The product design point, the output resolution with the signal source changes.)

1.way VGA signal input;
2.way DVI-D (24 +1 digital signal) outputs;
3.Support Display Format: 800 * 600 @ 60HZ, 1024 * 768 @ 60HZ, 1280 * 720 @ 60HZ, 1280 * 800 @ 60HZ, 1280 * 1024 @ 60HZ, 1366 * 768 @ 60HZ, 1440 * 900 @ 60HZ, 1600 * 1200 @ 60HZ, 1680 * 1050 @ 60HZ, 1920 * 1080 @ 60HZ;
4.output video signal impedance: 75 ohms;
5.Power Supply Specifications: AC Input (50 / 60HZ) - 100V-240V, DC Output: DC 5V/1A;
6.Operating temperature: -15 to +40 ;
7.Operating humidity: 10% -60%;

8.Product size: 115 * 74 * 22mm (with connector part);

Connection diagram:

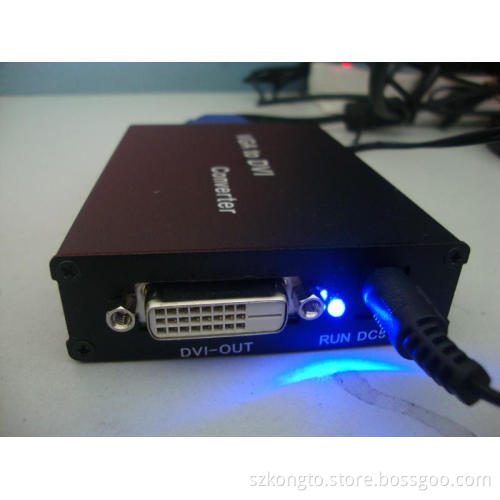

Work status Figure:

Effect diagram:
Test equipment one, PHILIPS 193E monitor (resolution 1440 * 900 60HZ):
