XVGA BOX/RGB to VGA , RGBS to VGA ,RGBHV to VGA

this device is mainly used for industrial use , if you have industrial device with old Monitor , but the monitor is already broken , then what is the best way to get the industrial device to work ? replace the new system ?

NO!! the industrial device cost is thousands of Dollars at least , you just need to purchase this and then connect to LCD or VGA device , the problem would be solved !! with only 2 hundred and a little more dollars!!

if you have any questions , just feel free to ask , we are professional in this area , not just sell , but also the best professional service and support!!

My company in the industrial equipment under long-term maintenance and reconstruction of the video on the lessons learned, collected numerous customer requests and feedback, after years of development and testing, the introduction of innovative industrial Video Converter-kt809, it can convert video signals to achieve full automation of industrial operation, to you in terms of industrial monitor repair and replacement of bringing affordable and convenient.

Video input signal formats supported: MDA, CGA, EGA, VGA, RGB, RGBS, RGB sog, RGBHV signal

Video input interface: 3-pin, 4-pin, 6-pin, 9-pin, 12-pin, three-row 15-pin, 15-pin double-row, 20-pin, 25-pin and other irregular signal interface

KT809 features

1, support 12k to 40k line frequency of the video signal, automatic identification, field frequency value limit.

2, support for RGB and YPbPr video formats.

3, supports both interlaced and progressive two scanning methods.

4, support vertical resolution from 200 lines to 600 lines, automatic identification.

5, support any level of resolution, automatic identification.

6, support separate sync signal and the composite sync signal or the composite synchronizing signal on a video signal, automatic identification.

7, the output 800 * 600 field frequency of 60Hz standard VGA signal or customized resolution

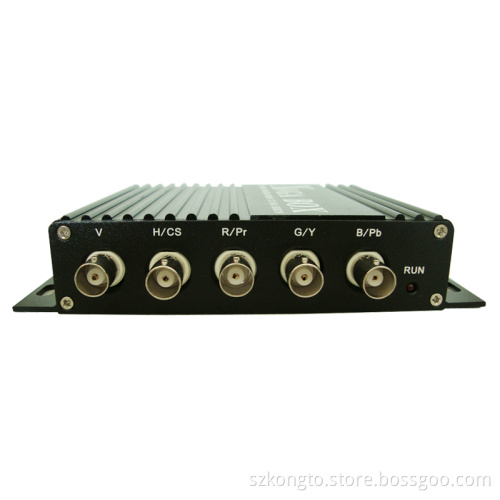

Note:9 Pin and BNC input signal, you can choose one of them.

Quick reference for 8219 interface:Definition for I/O interface

9 Pin D-SUB Reference:Definition for Input Channel II

Application for this converter:Definition for Input Channel I

Operation Menu:

(1)H_Position:Moves the position of the display area on the screen.

(2)Width:adjust the width of the menu

(3)V_Position:Moves the position of the display area on the screen vertically.

(4)Higth:adjust the height of the menu.

(5)Phase:adjust the phase of the menu.

(6)Style:Signal style, RGB(A) Analog,RGB(D) Digital TTL,YUV

(7)Sync:Signal Sync mode:Separate(HV),Composite(S),SOG,SOY. Automatic

recognition of video input sync, or custom of video input sync

(8)Resistance:75 ohm or 750 ohm.

(9)Scanning:Interlaced or Progressive.

(10)Exit&Save:Save and Exit.

(11)automatically save and exit:15 seconds, don`t press any key, the menu

automatically save and exit. (No signal input, the OSD menu will display)

(12)809 Advance menu:Turn on the 809 power, Press and hold the Menu buttons

simultaneously until the 809 Advance menu display, about 5 to 8 seconds.

(13)Restore the factory defaults for 8219:Turn off the 8219 power, Press and hold the

Menu buttons simultaneously until the kt809/8219 power on,about 3 to 5 seconds.

Control buttons:

---

Using the Screen Adjustment Menu

(OSD:On Screen Display)

STEP 1

Connected to signal, no display or display color is not correct, adjust the Signal style ( RGB(A) Analog/RGB(D) Digital TTL/YUV).

STEP 2

809 can automatically identify the sync signal, if the display distortions that need to manually adjust the sync signal(Separate(HV)/Composite(S)/SOG,SOY).

STEP 3

If the screen shows elongated, and the overflow to the bottom of the screen, choose the scanning mode adjusted: Progressive; or screen display is still only half of the monitor, choose the scanning mode to adjust to: interlaced.

STEP 4

Adjust the horizontal position, horizontal size, vertical position, vertical size of the item, adjust the monitor to display properly.

STEP 5

Input impedance: Select the correct input impedance.

STEP 6

Adjustment the phase until the display clearly.

STEP 7

Save and exit

---

The upgrading replacement for old CNC crt monitor as follows: replaceable model list
