Portable Smart Heated Jacket Battery High Capacity With 6v - 8.4v

Portable Smart Heated Jacket Battery High Capacity With 6v - 8.4v

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Product Name:	Rechargeable Li Ion Batteries	Model:	LX-DRF01
Usage:	Heating Jackets, Etc.	Color:	Black, White, Red, Pink, Blue, Brown, Etc
Charge Method:	CC/CV Constant Current/Constant	LED Display:	4-heat Settings, Capacity Level Indication

Portable Smart Heated Jacket Battery High Capacity With 6V - 8.4V

Features:

1. BAK, SAMSUNG or SANYO CELL Optional

2. Smart Power Management

3. LED Display

4. Four adjustable pulse outputs

5. Protection circuit inside

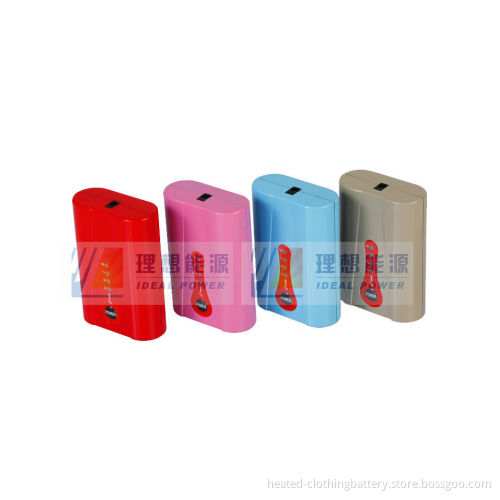

6. Different colors are optional

7. CE, FCC, RoHs Compliant

8. One Year Warranty

Parameters

Model No.	LX-DRF01
Nominal Voltage	7.4v
Working Voltage	6V-8.4V
Nominal Capacity	2200mAh
Charge Cut-off Voltage	8.4v
Charge Current	1A
Standby Current	≤15μA
Max. Output Power	15W MAX
Operating Efficiency	≥99%
Loading Resistance	5Ω-200Ω
Charge Method	CC/CV Constant Current/Constant
Charge Temperature	0℃—40℃
Discharge Temperature	-20℃～ +60℃
Charge Duration	2-3hrs(Standard)
Cycle Life Time	Above 500 cycles
Internal Impedance	PCB Internal Impedance<80mΩ; Battery Internal Impedance <180mΩ
LED Display	4-heat settings, capacity level indication
Output Terminal	DC3.51.357mm
Usage	For heated jackets, heated seat cushions, etc.
Battery Size	704822mm
Weight	130g
Color	black, white, red, pink, blue, brown, etc.
Certificates	CE, FCC, ROHS
Lead Time for Sample	3~7 days
Lead Time for Bulk Order	7~15 days

Operation:

Power Indication:

Without load, press & hold the black button to check capacity level:

1 LED blinking: Remaining Capacity<=20%

1 LED: Remaining Capacity <=40%

2 LEDs: Remaining Capacity <=60%

3 LEDs: Remaining Capacity <=80%

4 LEDs: Remaining Capacity <=100%

Remaining Capacity	Button	LED①	LED②	LED③	LED④
80%～100%	↓	●	●	●	●
60%～80%	↓	●	●	●	○
40%～60%	↓	●	●	○	○
20%～40%	↓	●	○	○	○
0%～20%	↓	●\|○Blink	○	○	○

Output Indication:

With load, press & hold the black button for 2 seconds to power on:

1.The ④ LED light in blue color means the output power is about 80% of full output power

2. Press the black button again, the ③ LED light in blue color means the output power is about 60% of full output power

3. Press the black button again, the ② LED light in blue color means the output power is about 40% of full output power

4. Press the black button again, the ① LED light in blue color means the output power is about 20% of full output power

5. Press & hold the black button for 2 seconds, the LED is off, and the power output also is off.

Output Power	LED④	LED③	LED②	LED①
100%	○	○	○	●
75%	○	○	●	○
50%	○	●	○	○
25%	●	○	○	○
0	○	○	○	○

Application:

heated snow sports wears, heated stadium seat cushions, heated base layers, heated underwears, heated jackets, heated vests, heated pants, heated clothing, heated clothes, heated garments, heated apparel, heated motorcycle clothes, heated motorcycle jackets, heated motorcycle vests, heated motorcycle pants, warming apparel, warming clothes, heated military vests, heated policemen vests, etc.

Package:

Packing	White Box + Anti-electrostatic bag
Carton Size	340310130mm
QTY/CTN	40PCS
Gross Weight	8.5kgs

LX-DRF01(7.4v 2200mAh)

More Battery Photo

Certificates

MSDS

Factory Photo

FAQ:

Q: 1. Can I have a sample order?
A: Of course.

Q: 2. What is the lead time?
A: 3~7 days for sample, 7~15 days for bulk order.

Q: 3. Do you have any MOQ limit?
A: No MOQ for existent items, MOQ 1000pcs for modified ones.

Q: 4. How do you ship the goods and how long does it take arrive?
A: For small quantity, generally ship by DHL, EMS, UPS, or FedEx, usually take 4~7 days to arrive. For

large quantity, ship by airplane or ocean, shipping time will depend on destination port.

Q: 5. How to proceed the order if I have logo to print?
A: Firstly MOQ 1000pcs request, then we will prepare artwork for visual confirmation, next we will make a

real sample for second confirmation. If sample is ok, finally we will go to mass production.

Q: 6. Do you offer guarantee for the products?
A: Of course, all our products are with One Year Warranty.

Q: 7. Do you accept drop shipping?

A: Of course.
