Lithium 7.4v 2200mah Heated Jacket Battery For Heated Vest And Gloves

Lithium 7.4v 2200mah Heated Jacket Battery For Heated Vest And Gloves

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Model:	LX-DRF01H	Voltage:	7.4v
Capacity:	2200mAh	Cell Type:	Lithium-ion

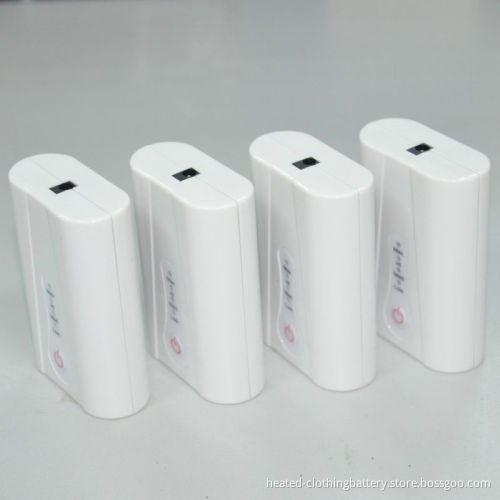

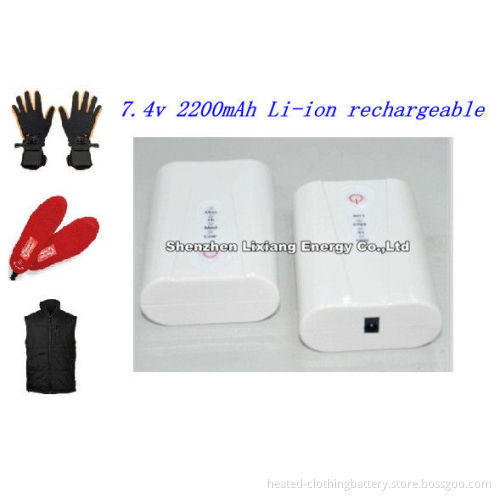

Lithium 7.4V 2200mAh Heated Jacket Battery for Heated Vest and Gloves

rechargable Lithium-ion battery pack for electric heated vests, LED display, CE FCC ROHS

Description:

1. Item: heated vest battery

2. Model: LX-DRF01

3. Voltage: 7.4v

4. Capacity: 2200mAh

5. Cell type: Lithium-ion

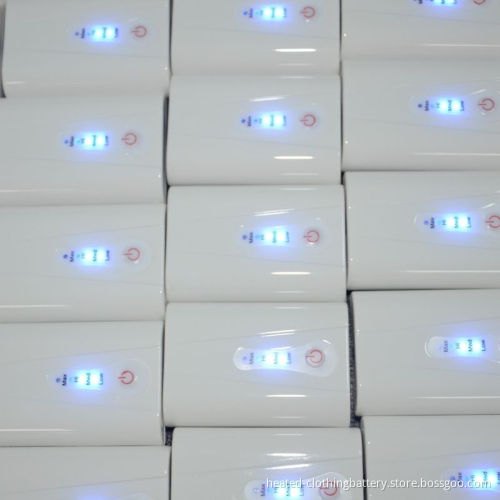

6. LED display: 4-step temperature control, capacity indication

7. Charge/discharge port: DC3.5*1.35*7mm

8. Size: 70*48*22mm

9. Color: shiny gloss white, UV coated

10. Usage: heated vest, etc.

11. Certificates: CE, FCC, ROHS

12. Warranty: 1 year

13. Lead time for sample: 3~5 days

14. Lead time for bulk order: 25~30 days.

Application:

Power for heated clothes/ heated jackets/ heated vests/ heated underwears/ heated base layers/ heated seat etc.

Package:

Each battery in anti-static bag & white box, then 20pcs/CTN or 40pcs/CTN.

Charger:

Input: AC100v~240v

Output: 8.4v 1.2A

Charging time: around 2 hours

US/ EU/ UK type optional

Certificates: CE, FCC, RHS.

Specification:

Model No.	LX-DRF01
Nominal Voltage	7.4v
Working Voltage	6V-8.4V
Nominal Capacity	2200mAh
Charge Cut-off Voltage	8.4v
Charge Current	1.2A
Standby Current	≤15μA
Max. Output Power	15W MAX
Operating Efficiency	≥99%
Loading Resistance	5Ω-200Ω
Charge Method	CC/CV Constant Current/Constant
Charge Temperature	0℃—40℃
Discharge Temperature	-20℃～ +60℃
Charge Duration	2-3hrs(Standard)
Cycle Life Time	Above 500 cycles
Internal Impedance	PCB Internal Impedance<80mΩ; Battery Internal Impedance <180mΩ

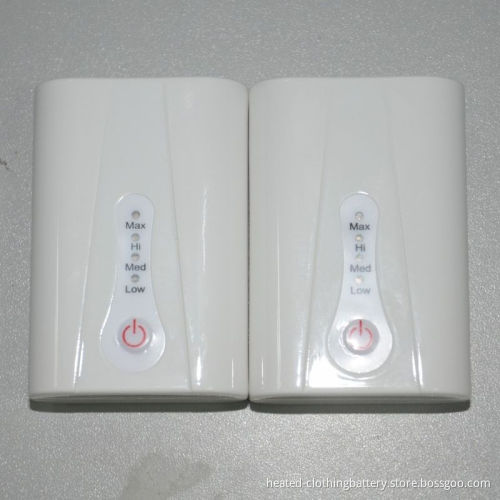

LED Display	4-heat settings, capacity level indication
Output Terminal	DC3.51.357mm
Usage	heated vest, heated seat cushions, etc.
Battery Size	704822mm
Weight	130g
Color	shiny gloss white, UV coated
Certificates	CE, FCC, ROHS
Lead Time for Sample	3~5 days
Lead Time for Bulk Order	25~30 days

Our Advantage:

1) As we are factory, we can guarantee our price is first-hand, very cheap and competitive with high quality.

2) To make sure provide customer with high quality product & good service, sample can be sent for approval fristly. Before shipment, our QC staff will check quality 1 pc by 1 pc.

3) If you receive defective items, please email us photo of the defectives.

4) Provide OEM service. Our factory can offer OEM service to customer. Please offer us your LOGO & all OEM design information, and we can do special OEM tooling & OEM service for you.

5) After-sale service: all prodcuts are with 1 year warranty.

Certificates

MSDS

Factory Photo

FAQ:

Q: 1. Can I have a sample order?
A: Of course.

Q: 2. What is the lead time?
A: 3~7 days for sample, 7~15 days for bulk order.

Q: 3. Do you have any MOQ limit?
A: No MOQ for existent items, MOQ 1000pcs for modified ones.

Q: 4. How do you ship the goods and how long does it take arrive?
A: For small quantity, generally ship by DHL, EMS, UPS, or FedEx, usually take 4~7 days to arrive. For

large quantity, ship by airplane or ocean, shipping time will depend on destination port.

Q: 5. How to proceed the order if I have logo to print?
A: Firstly MOQ 1000pcs request, then we will prepare artwork for visual confirmation, next we will make a

real sample for second confirmation. If sample is ok, finally we will go to mass production.

Q: 6. Do you offer guarantee for the products?
A: Of course, all our products are with One Year Warranty.
