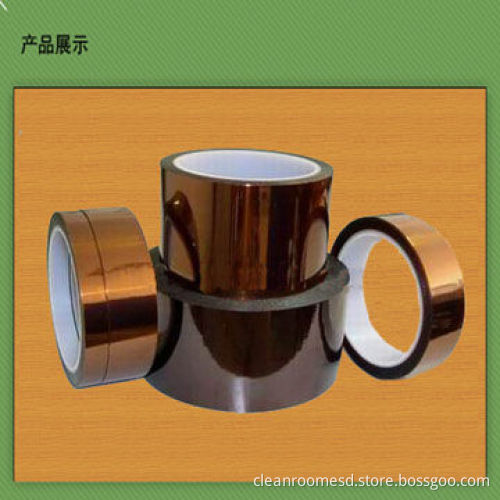

Amber Anti-static Polyester Kapton Polyimide Adhesive Heat Resistant Tape
Your message must be between 20 to 2000 characters
Contact NowAmber Anti-static Polyester Kapton Polyimide Adhesive Tape
1.ESD tape, polyimide&silicon
2.heat resistant
3.any size available
4.fast elivery
| Material: | Polyimide |
|---|---|
| Adhesive Side: | Single Sided |
| Adhesive: | Rubber |
| Adhesive Type: | Pressure Sensitive |
| Feature: | Heat-Resistant |
| Design Printing: | No Printing |
| color: | Amber |
| width: | 2-500mm |
| length: | 33 meters |
| thickness: | 0.04-0.06mm |
| material: | polymide |
| high temprature: | 280 degree |
1. Polyimide kapton tape is made of high temperature HN series polyimide film.
2.This Polyimide tape is used in masking of circuit boards during wave soldering or other electronic manufacturing
processes. It can be used in powder coating, automotive and transformer manufacturing.
3. It has high dielectric strength. Kapton masking tape, offers excellent performance in electrical and thermal
insulation.
4. This Kapton tape is made of 1 Mil Polyimide material with 1.5 mil of silicon adhesive which does not leave any
residue. It can withstand temperature up to 380°C.. It is packaged in 3" core and is 36 yards long.
5. Kapton Tape Applications: Electrical Insulation, Gold leaf mask of printed circuit boards during wave soldering,
transformer and capacitor insulation, powder coating and high temperature applications.
Physical Properties
| Adhesive Type: | Silicone |
| Backing Thickness (mm): | 0.025 |
| Total Thickness (mm): | 0, 06 |
| Peel Strength (N/cm): | 6 |
| Tensile Strength (N/cm): | 53 N/10mm |
| Elongation (%): | 50 |
| Temperature Range: | Continuous 180 short periods up to 380° |
Chemical Properties
| PH value of aqueous extract: | 4.0 - 6.0 |
| Freedom from corrosive sulphur: | No stain on copper |
Storage & Application
| Storage: | The conditions under which this product is stored may affect its performance. Storage should be in dry, well ventilated rooms with a constitute temperature of around 20° C and should be protected from continuous exposure to direct sunlight. |
| Method of Application: | The product should always be applied to clean, dry, surface |
More Detailed Product Description Please Click here: Kapton Tape spec.PDF
More Detailed Product Description Please Click here: Polyimide Film Tape spec.PDF
More Detailed Product Description Please Click here: TDS(antistatic kapton tape) spec.PDF
Kapton ESD tape
1. Kapton ESD tape is made of high temperature HN series polyimide film.
2.This Polyimide tape is used in masking of circuit boards during wave soldering or other electronic manufacturing processes. It can be used in powder coating, automotive and transformer manufacturing.
3. It has high dielectric strength. Kapton masking tape, offers excellent performance in electrical and thermal insulation.
4. This Kapton tape is made of 1 Mil Polyimide material with 1.5 mil of silicon adhesive which does not leave any residue. It can withstand temperature up to 380°C.. It is packaged in 3" core and is 36 yards long.
5.Kapton Tape Applications: Electrical Insulation, Gold leaf mask of printed circuit boards during wave soldering,transformer and capacitor insulation, powder coating and high temperature applications.
Physical Properties
|
Adhesive Type: |
Silicone |
|
Backing Thickness (mm): |
0.025 |
|
Total Thickness (mm): |
0,065 |
|
Peel Strength (N/cm): |
6 |
|
Tensile Strength (N/cm): |
53 N/10mm |
|
Elongation (%): |
50 |
|
Temperature Range: |
Continuous 180 short periods up to 380° |
Chemical Properties
|
PH value of aqueous extract: |
4.0 - 6.0 |
|
Freedom from corrosive sulphur: |
No stain on copper |
Storage & Application
|
Storage: |
The conditions under which this product is stored may affect its performance. Storage should be in dry, well ventilated rooms with a constitute temperature of around 20° C and should be protected from continuous exposure to direct sunlight. |
|
Method of Application: |
The product should always be applied to clean, dry, surfaces |
-
