Electronic Infrared Touch Frames 133 Inch Interactive Whiteboard
Quick Detail:
133inch Infrared Touch Frames interactive whiteboard
*fingers touch, opaque objects
*size 133"
*multi fingers touch under OS Win7/Win8
*driver free
*without glass, stuck on the wall as interactive whiteboard
Description:
Hitouch infrared multi touch screen frame is advanced technology of touch screen. It uses infrared sensors on the sides of touch screen frame, and insert them into the metal frame. The frames can be detachable for convinient transportation.
Customers can easily install the frames on locking nuts and stick by 3M double-faced tape.

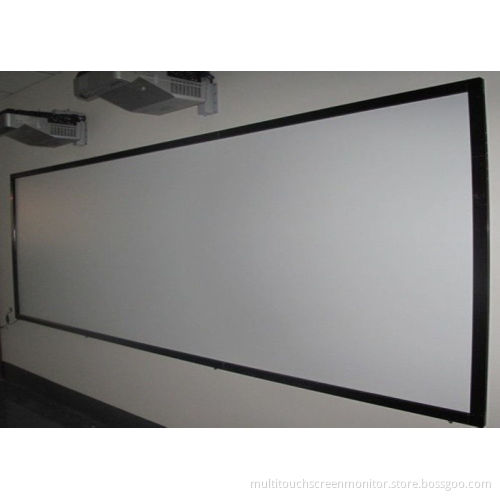

Stuck the touch frames on board or on the wall, it can be used as multi touch interactive whiteboard.
Competitive advantage:
1. Win8/Win7 multi touch supporting, OS Win xp/ Linux/Mac/Android
2. Touch speed & touch mode adjustable, no need for driver
3. Touch objects recognition, finger/pen/opaque objects
4. Super low CPU utilization when working
5. USB powered, connect through USB cable
6. Anti-light, anti-dust, waterproof can use in different environment.
Specifications:
Model No. | HT-IRTS133 | |||
Technology | Infrared | |||
Touch Points | 6, 16, 32 touch points simultaneously | |||
Resolution | 32767*32767 | |||
Minimum Recognition objects | 3mm*3mm | |||
Touch Response Speed | 6ms | |||
Scan Speed | 100fps | |||
Touch Object | Finger, glove hand, or other opaque object | |||
Working Voltage | 3.3V-5.0V | |||
Average Current | <300mA | |||
Surface durability | Hardness of glass is level 7 | |||
Driver | no need of driver | |||
Compatible Operating System | WinXP/Win7/win8/Mac/Android/Linux | |||
Size | 133" |
It contains several touch frames, and it needs two projectors for throwing full page.
