15w Universal Power Adapters Gfp151da Fixed Plug For Desktop
  • 15w Universal Power Adapters Gfp151da Fixed Plug For Desktop
  • 15w Universal Power Adapters Gfp151da Fixed Plug For Desktop
15w Universal Power Adapters Gfp151da Fixed Plug For Desktop
15w Universal Power Adapters Gfp151da Fixed Plug For Desktop

15w Universal Power Adapters Gfp151da Fixed Plug For Desktop

Get Latest Price
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Product Description
Product Description
Safety Standard: IEC/EN 60950-1, CSA C22.2, UL60950 Energy Efficiency: CEC V, EUP 2011, MEPS V
Output Voltage: 90~264Vac Output Current: 0.36A
Certification: UL，cUL, GS-TUV, CE, PSE, SAA, KC, Brazil, Maximum Output Power: 15W

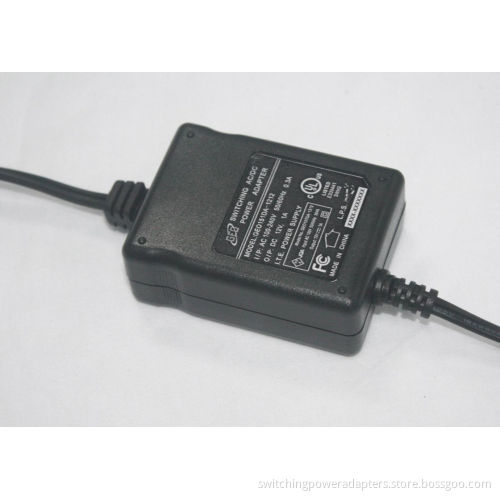

15W International Power Plug Adapters GFP151DA desktop, fixed AC cable type.

15W Power Adapter

Model : GFP151DA-XXXXXX-1
Description
  • Market: USA,Canada,Japan,China,Europe,Australia,England
  • Desk-top Type
  • Meet CEC Regulations
  • ROHS Compliance
  • Efficiency Level V

General Specifications

Maximum output power: 15W
Input voltage: 90~264Vac
Input Frequency: 47Hz~63Hz
Input Current: 0.36A
No Load Power Consumption: Less than 0.3W
Efficiency:  Meet CEC
Ripple noise (max): +1% voltage Max
Line Regulation: ±1%
Load Regulation: ±5%
Hold-Up Time: 16mS
Over Voltage Protection: 120%
Operating Temperature: 0~40°C
Storage Temperature: -20~85°C
Storage Humidity: 5%RH~90%RH
Withstand voltage: AC 3KV
Burn-In Test: 100% Full Load
MTBF: 50000Hours
Weight: ABOUT 150g



Dimensions
LxWxH: 68.5x50x26.5 (mm)

Model INPUT OUTPUT
GFP151DA-030250-1   3.0V-3.9V 0.01-2.5A
GFP151DA-040250-1   4.0V-4.9V 0.01-2.5A
GFP151DA-050250-1   5.0V-5.9V 0.01-2.5A
GFP151DA-060230-1   6V 0.01-2.3A
GFP151DA-061200-1   6.1V-6.9V 0.01-2.0A
GFP151DA-070200-1   7.0V-7.9V 0.01-2.0A
GFP151DA-090160-1   9V 0.01-1.6A
GFP151DA-091150-1   9.1V-9.9 0.01-1.5A
GFP151DA-100150-1 90-264VAC 10V 0.01-1.5A
GFP151DA-101130-1 (47-63Hz) 10.1V-10.9V 0.01-1.3A
GFP151DA-110130-1   11.1V-11.5V 0.01-1.3A
GFP151DA-116125-1   11.6V-11.9V 0.01-1.25A
GFP151DA-120125-1   12V 0.01-1.25A
GFP151DA-121115-1   12.1V-12.9V 0.01-1.15A
GFP151DA-130115-1   13V-13.5V 0.01-1.15A
GFP151DA-136110-1   13.6V-13.9V 0.01-1A
GFP151DA-140100-1   14V-14.9V 0.01-1A
GFP151DA-150100-1   15V 0.01-1A
GFP151DA-151090-1   15.1V-15.9V 0.01-0.9A
GFP151DA-160085-1   16V-16.9V 0.01-0.85A
GFP151DA-180075-1   18V-18.9V 0.01-0.75A
GFP151DA-190070-1   19V-19.9V 0.01-0.70A
GFP151DA-200065-1   20V-20.9V 0.01-0.65A
GFP151DA-210060-1   21V-21.9V 0.01-0.6A
GFP151DA-220060-1   22V-22.9V 0.01-0.6A
GFP151DA-230060-1   23V-23.9V 0.01-0.6A
GFP151DA-240060-1   24V 0.01-0.6A
GFP151DA-241055-1   24.1V-24.9V 0.01-0.55A
