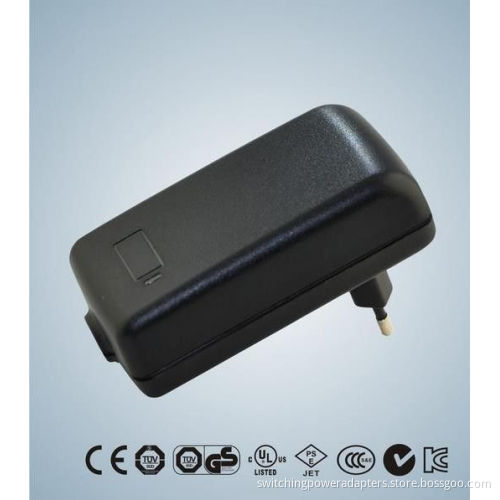

45watt Ksas045 Series Light Switching Power Adapters 5v - 24vdc 1.88a - 5a
  • 45watt Ksas045 Series Light Switching Power Adapters 5v - 24vdc 1.88a - 5a
45watt Ksas045 Series Light Switching Power Adapters 5v - 24vdc 1.88a - 5a

45watt Ksas045 Series Light Switching Power Adapters 5v - 24vdc 1.88a - 5a

Get Latest Price
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Product Description
Product Description
Product Name: Switching Power Adapters Input Voltage: 90 To 264 VAC
Frequency: 47-50/60-63HZ Leakage Current: 0.25 MA Max
Key Applications: KSAFF Series Certification: UL，cUL, GS-TUV, CE, PSE, SAA, KC, Brazil,

45Watt KSAS045 Series Light Switching Power Adapters 5V - 24VDC 1.88A - 5A



Input: •Input Voltage:   90 to 264 VAC
•Frequency :      47-50/60-63HZ
•Input current :  1.2A (Max) 120 /240VAC
•Inrush current : 50A Max. 120VAC at max Load
                              80A Max.240VAC at max Load
•Leakage current: 0.25 mA Max
Output: •Over voltage protection
•Over current protection
 at 110-200% of lo and Auto-recovery
•Electronic short circuit protection
•Operating temperature 0~35℃ Free convection
•Operating humidity 10-90% RH Non Condensing
•Sea level Non-operating temperature -20~ 80℃
Safety standards: •Information technology equipment
•IEC/EN 60950-1, UL 60950-1, CSA C22.2
 No. 60950-1-03,GB4943,K60950
Certificates and approvals: •CB , GS , CE , TUV , UL , CCC , FCC,PSE,C-TICK
EMI Emission: •Radiation Test&Conduction Test:EN 55022/FCC Part 15
•Harmonic Test:EN 61000-3-2
•Flicker  Test:EN 61000-3-3
EMS immunity: •ESD    Test:EN 61000-4-2
•RS     Test:EN 61000-4-3
•EFT    Test:EN 61000-4-4
•Surge  Test:EN 61000-4-5
•CS     Test:EN 61000-4-6
•DIP    Test:EN 61000-4-11
Key Applications: Key Features of KSAFF series
•Light, extra slim, sleek, compact design
•Green power, full complies with CEC level IV, MEPS IV EUP2010
•High power density
•Extra safe design, have got their respective safety approvals
•Completed protect function

Key Applications of KSAFF series
•It’s suitable for an extremely wide range of applications, including:
•Mobile Devices
•Laptop
•Printer
•Pos
•ADSL
•Hard disk drive
Payment Details: •Payment Terms: T/T,negotiable for OEMs
Main Export Markets: • Eastern Europe
• North America
• Mid East/Africa
• Central/South America
• Asia
• Western Europe
• Australasia
