Bag Clothing Detection X Ray Inspection Machines , 0.22m/s

Name: shoes detection, x-ray inspection toys, x-ray inspection shoes
Tunnel Size: 650(W)×500(H)mm
Conveyor Speed: 0.22m/s
Conveyor Max Load: 170 kg
Steel Penetration: 38MM armor plate
Application: detect All types of Metal, Calcified bones, Ceramic or concrete, Glass, PVC plastic
Display: High resolution 1920*1080; 24-bit Color; 19” LED display
Feature: Network interface, Low leakage dose rate, multi-energy
Penetration resolution: 0.254mm
Spatial Resolution: 1.0mm Horizontal, 1.0mm Vertical
X-RAY Sensor: L-shaped array detector 24bit
Wire Resolution: 0.0787mm metal line (40AWG)
Noise: < 65dB
Anode Voltage: 100~160KV(adjustable)

Quick Detail:

38MM Penetration, Multi-energy X-RAY Inspection detector to identify possible foreign contaminants in your product. This reduces risk of customer complaints and possible recalls.

Tunnel Size:

65cm x 50cm

Description:

Our x-ray inspection systems can detect: All types of

Metal, Calcified bones, Ceramic or concrete, Glass, PVC plastic, Rubber,

Stainless steel, Stones, Teflon.it is easy to installation and maintenance. SHENFEI branded products received certifications of CE, Test report from China Ministry of Public Security and we have our own patent and copyright for our x-ray image Operation software and technology.

Applications:

Factories (to find needle in toys, shoes, bags, clothing),

Specifications:

General Specifications

Tunnel Size : 650(W)×500(H)mm

Conveyor Speed: 0.22m/s

Conveyor Max Load: 170 kg

Wire Resolution: 0.0787mm metal line (40AWG)

Penetration resolution: 0.254mm

Spatial Resolution: 1.0mm Horizontal 1.0mm Vertical

Steel Penetration: 38MM armor plate

Film Safety: For ISO 1600

X-RAY GENERATOR

Orientation:Upward

Tube Current:0.4~1.2MA(adjustable)

Anode Voltage:100~160KV(adjustable)

Angle:60°

Generator cooling/working periods:

Sealed oil bath with forced air/100％

X-RAY Sensor: L-shaped array detector 24bit

Dual energy

Multi-energy: High/low energy: Switch from high energy to low energy

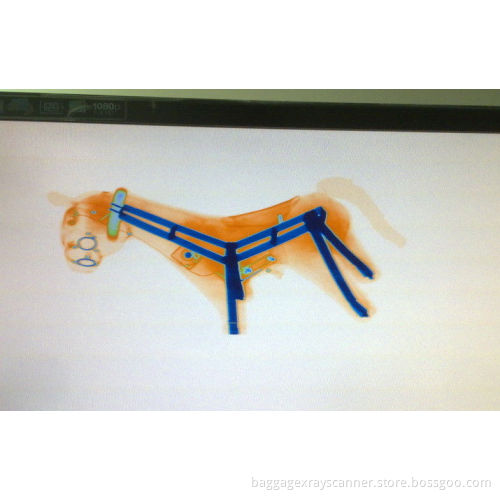

Color material identification:

Organic objects in orange, inorganic objects in blue, mixture in green

Assist to detect drug and explosive powder

OPERATING ENVIRONMENT

Storage Temperature: -20ºC to 60ºC

Operating Temperature:0ºC to 45ºC

Relative Humidity:

20 to 95% non-condensing

System Power:220 VAC (±10%) 50±3HZ

Power wastage:1.0 KW (Max)

Noise<65DB

Competitive Advantage:

Outstanding detection power and unique functions

Outstanding detection power apart from packing materials (aluminum, paper, plastic, etc.)

Detecting contaminants / omissions / faulty products

High sensitivity detection

0.2mm lead, iron and stainless ball:
Up to 0.28mm can be detected.

Lead (Pb)	0.2mm x 0.2mm x 0.2mm
Fe sphere	Ø0.28mm
Sus sphere	Ø0.26mm
Sus Wire	Ø0.28mm x 1mm
Bone	1.4mm x 1.4mm x 1.4mm
Stone	1.2mm x 1.2mm x 1.2mm
Crystal	1.2mm x 1.2mm x 1.2mm

such non-metals and stone

and glass
can be detected up to 1.2mm

Note:

Actual detection sensibility is subject to change depending on the physical property (contents or shape) and working conditions.

Safety of x-rays

Machines are built to exceed the stringent requirements of Radiation Safety Certificate from Chinese Government. In addition the systems have been specifically designed to meet the strict hygiene requirements of the food processing industry. As our X-ray system scans less than 0.02Gy, it is far less than that recommended by WHO.
