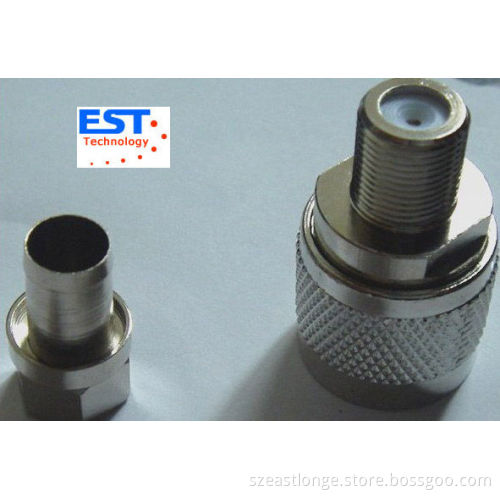

N Male/female Connector

Electrical Characteristics:
Characteristic Impedance: 50Ω   Frequency Range: 0-11GHz
Contact Resistance: Inner conductor: ≤1.0mΩ  Out conductor: ≤0.2 mΩ
Insulation Resistance: ≥5000MΩ   VSWR: ≤1.30  Durability: 500 cycles
Material and Finishing:
Center Contact:
   Pin-------brass, gold or silver plated
   Jack------Phosphor bronze or beryllium bronze, gold or silver plated
Body and other metal parts: brass, nickel or ternary alloy plated
Insulator: PTFE
Gasket: Silicone Rubber
