Outdoor Antenna Gsm Signal Booster , Coaxial-cable Cellphone Signal Repeater

Outdoor Antenna Gsm Signal Booster , Coaxial-cable Cellphone Signal Repeater

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Product Name:	GSM Signal Booster	Export Power (Po):	≥23dBm
Noise Figure:	≤4dB	Coverage Area:	1000 M2
I/O Impedance:	50Ω/N Connector	Size:	220 X 140 X 40 Mm
Frequency Range:	Uplink:890—915MHZ Downlink 935-960MHz	Pass Band Ripple:	≤3dB
Coverage Area:	200 M2	Power Supply:	AC110～240V 45～55Hz

Outdoor Antenna GSM Signal Booster , Coaxial-Cable Cellphone Signal Repeater

Description

A mobile phone signal repeater provides the ultimate solution in any area where cellular communications can not work well due to leak of signals. The repeater device features easy installation & operation, build-in indoor antenna and no interference. It could also improve indoor electromagnetism environments, protract cellular battery life and reduce radiation of cellphones. A mobile phone repeater is ideal for house, home, office use.
The device featured by easy installation & operation and no interference. It is the ideal device for boost mobile phone signal. A mobile phone repeater could also improve indoor ctromagnetism environments, protract cellular battery life and reduce radiation of cellphones.

Specification

Frequency range	Uplink:890—915MHZ Downlink 935-960MHz
Gain ( dB)	Uplink Gp≥50 Downlink Gp≥55
Export power (Po)	≥17dBm
Pass band ripple	≤3dB
I/O impedance	50Ω/N connector
Noise figure	≤4dB
Transmission Delay	≤0.5μs
Ambient temperature	-10℃～60℃
Power supply	AC110～240V 45～55Hz
Size	220 x 140 x 40 mm
Reliability	To the GB6993-86 standard
Electromagnetic compatibility	To the ETS300 694-4 standard

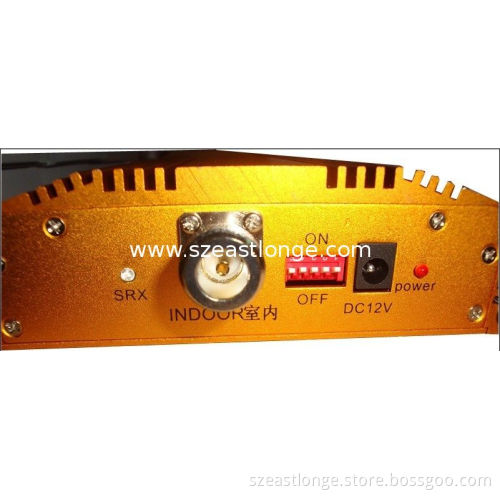

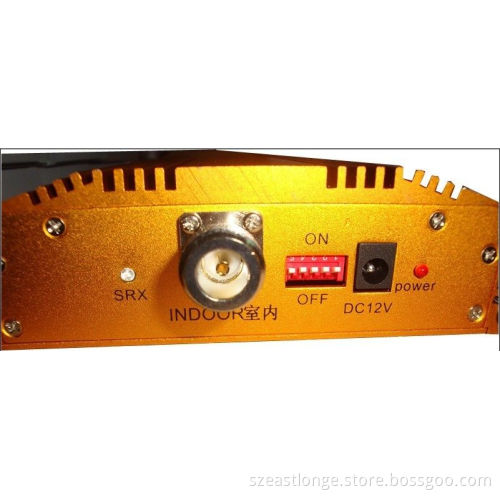

Function	a) Power supply LED denote b) Export power LED denote
coverage area	200 m2
