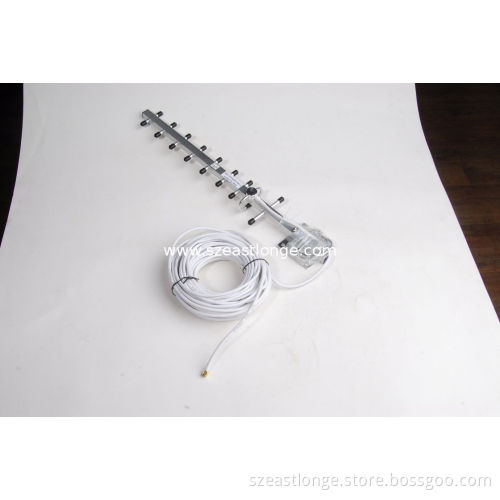

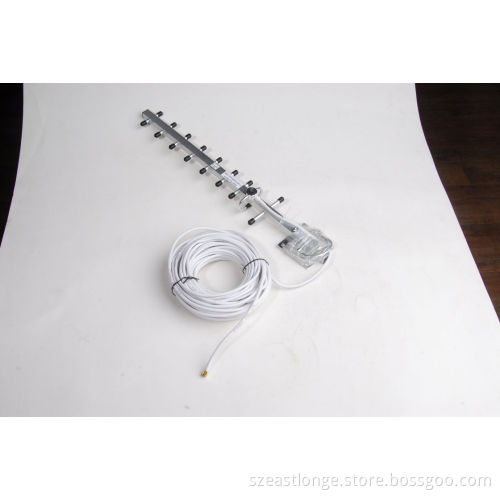

High-speed 3g Cell Phone Signal Repeater 65db , Outdoor Antenna Booster

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

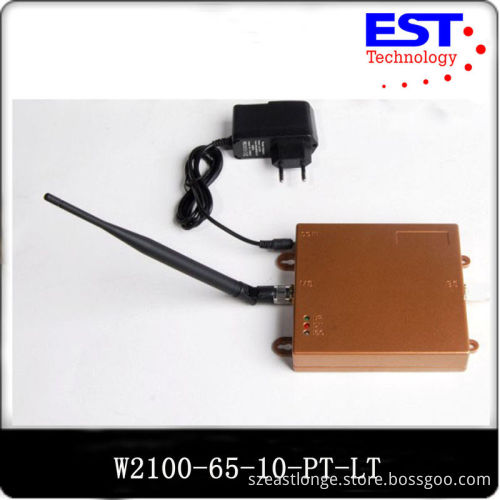

High-speed 3G Cell Phone Signal Repeater 65dB , Outdoor Antenna Booster

Gain: ≥ 65dB

Dimensions: 115*150*30 (mm)

Weight: ≤ 1.5 kg

2. Features and function

● testing the isolation of outdoor and indoor antenna

● Automatic adjustment (AGC) big coverage

● High-speed figure ALC

● output power indication

● automatically be standby without calls.

●automatically shut off of uplink and downlink once self-excitation.

● Clearance noise function of uplink and no interference to base station

● Uplink and downlink gain automatic balance;

●Small size, light weight, beautiful appearance, high gain and low power dissipation.

● Low noise amplifying, improving communication quality and reduction of dropped calls;

●Good aluminum shell shield, greatly improving the anti-interference ability.

● Easy installation and operation

This product is mainly used for indoor small coverage. It is widely used in car parking, business centers, entertainments, car and boats etc.

Technology index

model	color		frequency
			uplink	downlink
W2100-65-10-O	off-white		1920-1980	2110-2170
Electrical items			index
max gain			65±3dB
uplink output power			≥10,17dBm
Downlink output power			≥10,17dBm
Noise figure (Max gain)			≤5.0dB
Pass band ripple			≤4.0dB
ALC/AGC (range)			≥30dB
Intermediation attenuation			Output 10dBm≤-50dBc
			Output 17dB≤-45dBc
			Output 20dBm≤-40dBc
			Output 23dBm≤-36dBc
Max input power			≤-25dBm
Spurious Emission is 2.5MHz away from working band edge		9kHz～150kHz	≤-36dBm @1kHz
		150kHz～30MHz	≤-36dBm @10kHz
		30MHz～1GHz	≤-36dBm @100kHz
		1GHz～12.75GHz	≤-36dBm @1MHz
transmission delay			≤1.0μs
Indicator lights			ISO(white and blue light):isolation indicator
			DN (Red):downlink working indicator
			UP (green):uplink working indicator
Working voltage			DC 5.0V
working current			≤1.5A
Power adaptor			AC 100～240V,50/60Hz
Ambient temperature			-5℃～+45℃
relative humidity			≤85%
structural items			index
RF connector			SMA-F
Power port			KLD-40-17
Dimensions			150×115×27mm
weight			≤0.5Kg
