Basic Info

Product Description

Pixel Pitch(mm):	7.62mm	Pixel Density(dots/sqm):	17222 Dots/sqm
Calibrated Brightness(cd/sqm,nit):	1700 Nits(adjustable)	Pixel Configuration:	SMD3528 1R1G1B 3 In 1
Tube Chip Color:	Full Color	Display Function:	Video
View Angle(degree)(50% Brightness):	V140/H140	Refresh Rate(Hz):	>1200 Hz
LED Drive:	Constant-current	Control Mode:	Synchronous Or Asynchronous
Average Power Consumption:	220 W/sqm	Screen Operation Mode(scan/static):	1/8
Usage:	Indoor Advertising

Events Advertsing Vedio Wall Mounted LED Display , SMD 3 In 1 P7.62 MM

Quick Detail:

1) Stable quality:Opto + Silan chipset;

2) High brightness:1500 ~1800nits;

3) Scan driver:1/8 current;

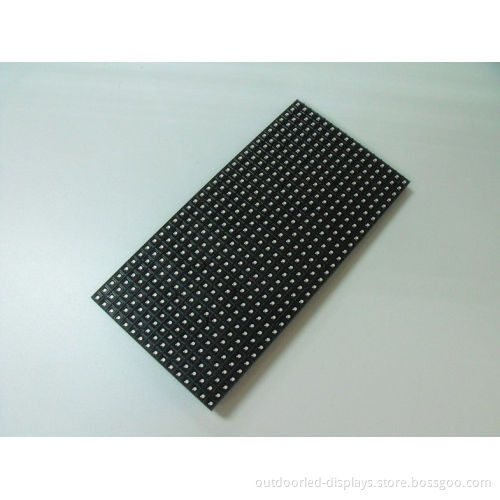

4) Module size(L*W):244*122mm;

Description:

P7.62 Indoor Full Color LED Display Screen

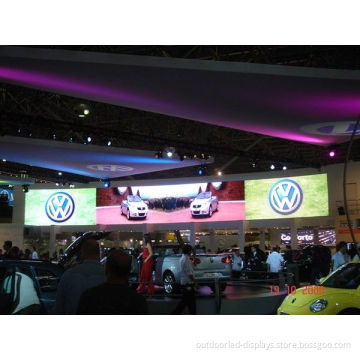

7.62mm pixel pitch,1R1G1B,17222 dots/sqm,P7.62 Indoor Full Color LED Display Screen creates comfortable brightness and energy saving,display variable video resources,animations,messages to attract attention. We can see P7.62 Indoor Full Color LED Display Screen in many occasions,like Sports,advertising,traffic,entertainment,stage,events,stations,shopping center,airport,exhibitions, car shows, fashion shows, concerts, ceremonies, etc

Applications Occasions:

Sports,advertising,traffic,entertainment,stage,events,stadium,train station,bus station,shopping center,airport,exhibitions, car shows, fashion shows, concerts, ceremonies, etc

Specifications:

P7.62mm Indoor Full Color LED Display Screen:

Pixel configuration	SMD3528 1R1G1B 3 in 1
LEDs configuration	Red:wave length: 625~630nm;300-400mcd Green:wave length: 525~530nm;600-800mcd Blue:wave length: 470~475nm;100-150mcd
Pixel pitch(mm)	7.62
Pixel density(dots/sqm)	17222
Calibrated brightness(cd/sqm,nit)	1700 nits(adjustable)
Calibrated brightness proportion ratio	R: G: B = 3:6:1
Contrast ratio	4,500:1
Brightness adjustment(dimming)	100 grade auto/manual-adjustment
View angle(degree)(50% brightness)	V140/H140
Color capability	4.4 trillion
Refresh rate(Hz)	>1200 Hz
Frame frequency(Hz)	>60 Hz
Interface port	DVI interface(DVI connector)
Input signal	VGA, Video, AVI, MOV, MPG, DAT, VOB etc.
LED Drive	Constant-current
Lifetime(hours)(50% brightness)	100,000 hours
Signal transmission direction	Horizontal
Operating temperature(Celsius degree)	-30 ~ 65
Storage temperature(Celsius degree)	-35 ~ 70
Operation humidity(RH)	0-95%
Operation humidity(RH)	0-99%
Service	Front and back service optional
Control mode	Synchronous & asynchronous available
Communication options	Wire Ethernet, Fiber Ethernet,RF wireless,GPRS
Power	120/240 VAC single phase(50-60Hz)
Maximum power consumption(W/sqm)	550
Average power consumption(W/sqm)	220
Screen operation mode(scan/static)	1/8
Module configuration(Pixels quantities of the module)	Length		32
	Height		16
Module dimensions(mm)	Length		244
	Height		122
Cabinet configuration	Length		128
	Height		96
Cabinet dimensions(mm)	Length		976
	Height		732
	Width		90(+module thickness)
Aspect Ratio(L:H)	4:3 or 16:9
Packaging configuration	1~6 standard cabinets in a packing case
Packing material	Wooden case/carton/flight case(optional)
Packing weight(KG)	net	40KG/m2
	gross	45KG/m2 (Iron)
