Large Video Wall Mounted Led Display Billboard P20 , 2r1g1b / 1r1g1b

Large Video Wall Mounted Led Display Billboard P20 , 2r1g1b / 1r1g1b

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Pixel Pitch(mm):	20mm	Pixel Density(dots/sqm):	2500 Dots/sqm
Calibrated Brightness(cd/sqm,nit):	7500 Nits	Pixel Configuration:	DIP346 1R1G1B / DIP546 2R1G1B
Tube Chip Color:	Full Color	Display Function:	Video
View Angle(degree)(50% Brightness):	V60/H120	Refresh Rate(Hz):	>1800 Hz
LED Drive:	Constant-current	Control Mode:	Synchronous Or Asynchronous
Average Power Consumption:	350 W/sqm	Screen Operation Mode(scan/static):	Static
Usage:	P20 Outdoor LED Display Screen	Scan Driver:	Static Current

Large Video Wall Mounted LED Display Billboard P20 , 2R1G1B / 1R1G1B

Quick Detail:

1) Stable quality:Opto + Silan chipset;

2) High brightness:>6000 nits;

3) Scan driver:static current;

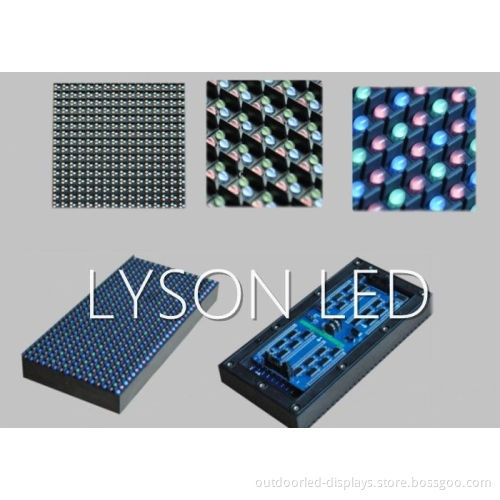

4) Module size(L*W):320*160mm;

Description:

P20 Outdoor Full Color LED Display Screen

20mm pixel pitch,1R1G1B,2500 dots/sqm,P20 Outdoor Full Color LED Display Screen creates high brightness and energy saving,display variable video resources,animations,messages to attract attention. We can see P20 Outdoor Full Color LED Display Screen in many occasions,like Sports,advertising,traffic,entertainment,stage,events,stations,shopping center,airport,exhibitions, car shows, fashion shows, concerts, ceremonies, etc

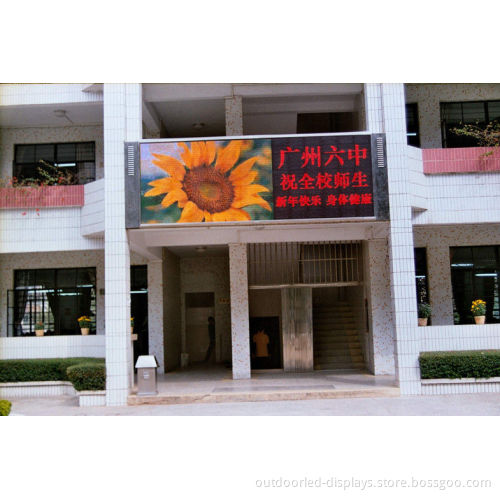

Applications Occasions:

Sports,advertising,traffic,entertainment,stage,events,stadium,train station,bus station,shopping center,airport,exhibitions, car shows, fashion shows, concerts, ceremonies, etc

Specifications:

P20mm Outdoor Full Color LED Display Screen

Pixel configuration	DIP346 1R1G1B
LEDs configuration	Red:wave length: 625~630nm;1100-1300mcd Green:wave length: 525~530nm;1900-2400mcd Blue:wave length: 470~475nm;500-700mcd
Pixel pitch(mm)	20
Pixel density(dots/sqm)	2500
Calibrated brightness(cd/sqm,nit)	7500 nits(adjustable)
Calibrated brightness proportion ratio	R:G:B = 3:6:1
Contrast ratio	4,500:1
Brightness adjustment(dimming)	100 grade auto/manual-adjustment
View angle(degree)(50% brightness)	V60/H120
Color capability	4.4 trillion
Refresh rate(Hz)	>1800 Hz
Frame frequency(Hz)	>60 Hz
Interface port	DVI interface(DVI connector)
Input signal	VGA, Video, AVI, MOV, MPG, DAT, VOB etc.
Protection grade	IP65 front side/IP43 back side
LED Drive	Constant-current
Lifetime(hours)(50% brightness)	100,000 hours
Signal transmission direction	Horizontal
Operating temperature(Celsius degree)	-30 ~ 65
Storage temperature(Celsius degree)	-35 ~ 70
Operation humidity(RH)	0-95%
Operation humidity(RH)	0-99%
Service	Front and back service optional
Control mode	Synchronous & asynchronous available
Communication options	Wire Ethernet, Fiber Ethernet,RF wireless,GPRS
Power	120/240 VAC single phase(50-60Hz)
Maximum power consumption(W/sqm)	700
Average power consumption(W/sqm)	350
Screen operation mode(scan/static)	static
Module configuration(Pixels quantities of the module)	Length	16
	Height	8
Module dimensions(mm)	Length	320
	Height	160
Cabinet configuration	Length	64
	Height	48
Cabinet dimensions(mm)	Length	1280
	Height	960
	Width	120 (+30~35mm module)
Aspect Ratio(L:H)	4:3 or 16:9
Packaging configuration	1~4 standard cabinets in a packing case
Packing material	Wooden case/carton/flight case(optional)
Packing weight(KG)	net	60KG/m2
	gross	65KG/m2
