P4.81 Hd Indoor Rental Led Display Panels 1r1g1b , Die-casting Cabinet Board

P4.81 Hd Indoor Rental Led Display Panels 1r1g1b , Die-casting Cabinet Board

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Calibrated Brightness(cd/sqm,nit):	1600 Nits(adjustable)	Pixel Configuration:	SMD2121 1R1G1B 3 In 1 Black LED
Pixel Density(dots/sqm):	43264	Pixel Pitch(mm):	4.81
Refresh Rate(Hz):	>800 Hz	Average Power Consumption:	400W/sqm
Control Mode:	Synchronous Or Asynchronous	Display Function:	Video
LED Drive:	Constant-current	Screen Operation Mode(scan/static):	1/13
Tube Chip Color:	Full Color	Usage:	Indoor Advertising
View Angle(degree)(50% Brightness):	V140/H140

P4.81 HD Indoor Rental LED Display Panels 1R1G1B , Die-casting Cabinet Board

Quick Detail:

1) Stable quality:Opto + Silan chipset;

2) High brightness:1400 ~1600nits;

3) Scan driver:1/13 current;

4) Cabinet size(L*W):500*500mm;

Description:

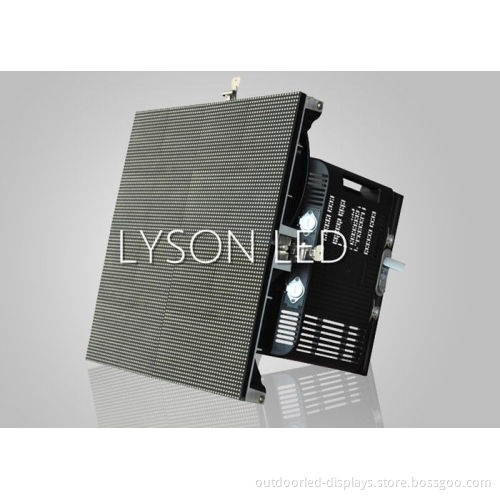

P4.81 Die-casting Indoor Full Color LED Display Screen

4.81mm pixel pitch,1R1G1B,43264 dots/sqm,P4.81 Die-casting Indoor Full Color LED Display Screen creates comfortable brightness and energy saving,display variable video resources,animations,messages to attract attention. We can see P4.81 Die-casting Indoor Full Color LED Display Screen in many occasions,like Sports,advertising,traffic,entertainment,stage,events,stations,shopping center,airport,exhibitions, car shows, fashion shows, concerts, ceremonies, etc

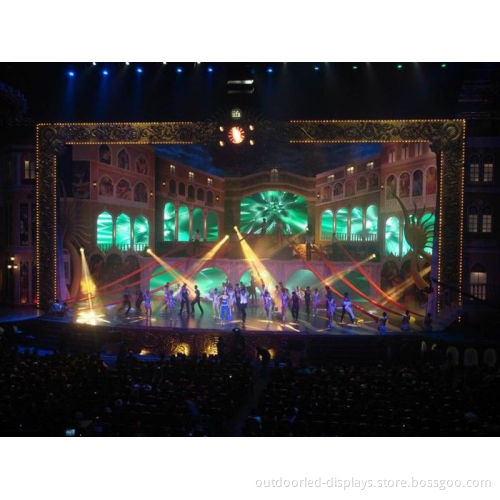

Applications Occasions:

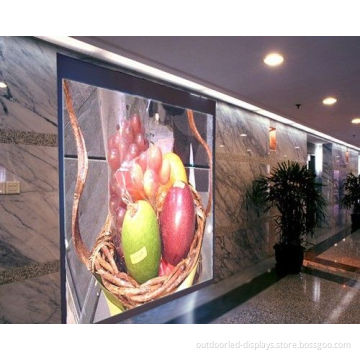

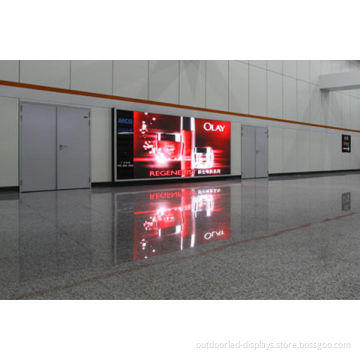

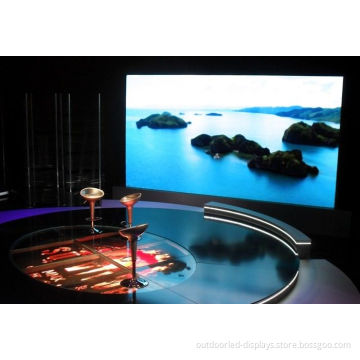

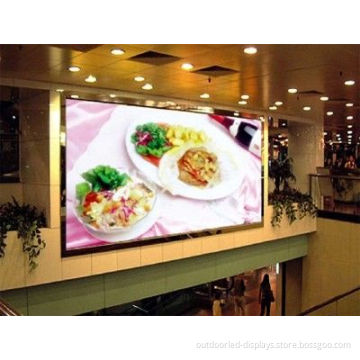

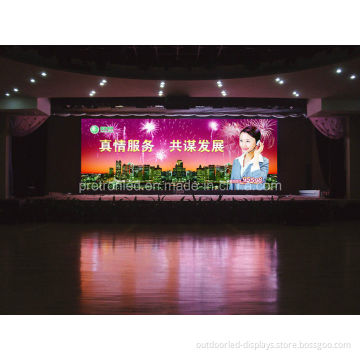

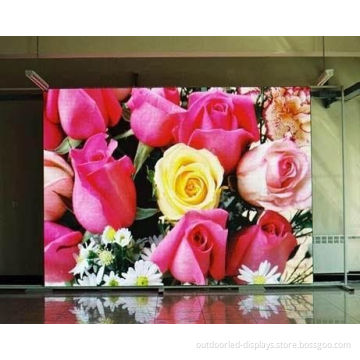

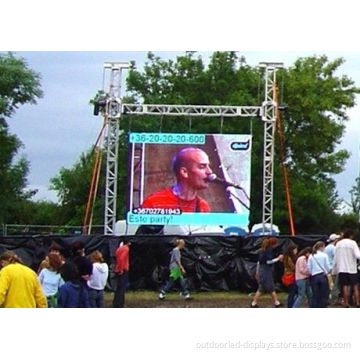

Sports,advertising,traffic,entertainment,stage,events,stadium,train station,bus station,shopping center,airport,exhibitions, car shows, fashion shows, concerts, ceremonies, etc

Specifications:

P4.81mm Die-casting Indoor Full Color LED Display Screen:

Pixel configuration	SMD2121 1R1G1B 3 in 1 Black LED
LEDs configuration	Red:wave length: 615~625nm;130mcd Green:wave length: 520~535nm;400mcd Blue:wave length: 460~475nm;140mcd
Pixel pitch(mm)	4.81
Pixel density(dots/sqm)	43264
Calibrated brightness(cd/sqm,nit)	1600 nits(adjustable)
Calibrated brightness proportion ratio	R:G:B = 3:6:1
Contrast ratio	4,500:1
Brightness adjustment(dimming)	100 grade auto/manual-adjustment
View angle(degree)(50% brightness)	V140/H140
Color capability	4.4 trillion
Refresh rate(Hz)	>800 Hz
Frame frequency(Hz)	>60 Hz
Interface port	DVI interface(DVI connector)
Input signal	VGA, Video, AVI, MOV, MPG, DAT, VOB etc.
LED Drive	Constant-current drive
Lifetime(hours)(50% brightness)	100,000 hours
Signal transmission direction	Horizontal
Operating temperature(Celsius degree)	-20 ~ 60
Storage temperature(Celsius degree)	-30 ~ 80
Operation humidity(RH)	10-95%
Operation humidity(RH)	10-99%
Servicice	Front and back service optional
Control mode	Synchronous & asynchronous available
Communication options	Wire Ethernet, Fiber Ethernet,RF wireless,GPRS
Power	120/240 VAC single phase(50-60Hz)
Maximum power consumption(W/sqm)	1200
Average power consumption(W/sqm)	400
Screen operation mode(scan/static)	1/13
Cabinet configuration	Length	104
	Height	104

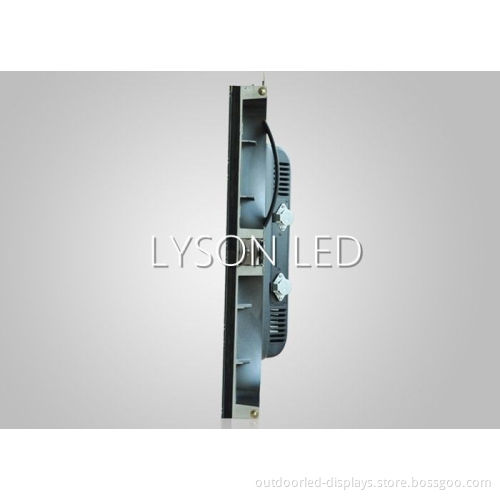

Cabinet dimensions(mm)	Length	500
	Height	500
	Width	85
Recommend Optimal Viewing Distance: Minimum & Maximum	Min	5
	Max	100
Aspect Ratio(L:H)	4:3 or 16:9
Packaging configuration	5 standard cabinets in a flight case
Packing material	flight case
Packing weight(KG)	net	8KG/cabinet
	gross	9KG/cabinet
