Basic Info

Product Description

Calibrated Brightness(cd/sqm,nit):	8500 Nits(adjustable)	Pixel Configuration:	DIP346 1R1G1B / DIP546 2R1G1B
Pixel Density(dots/sqm):	3906 Dots/sqm	Pixel Pitch(mm):	16mm
Refresh Rate(Hz):	>1500 Hz	Average Power Consumption:	400 W/sqm
Control Mode:	Synchronous Or Asynchronous	Display Function:	Video
LED Drive:	Constant-current	Screen Operation Mode(scan/static):	Static
Tube Chip Color:	Full Color	Usage:	P16 Outdoor LED Display Screen
View Angle(degree)(50% Brightness):	V60/H120	Scan Driver:	Static Current

2R1G1B P16 Outdoor LED Display Boards , Commercial DIP LED Screen 3906 dots/m2

Quick Detail:

1) Stable quality:Opto + Silan chipset;

2) High brightness:>8000 nits;

3) Scan driver:1/4 current;

4) Module size(L*W):256*256m;

Description:

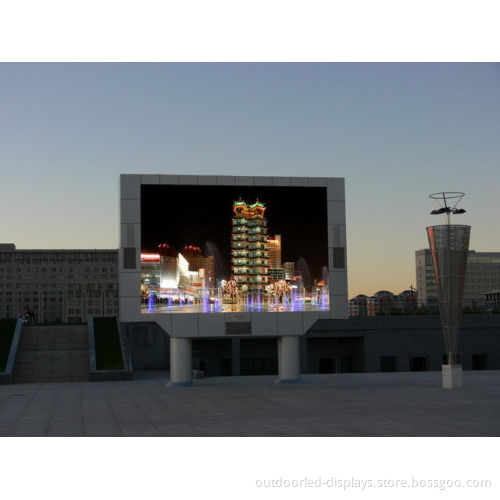

P16 Outdoor Full Color LED Display Screen

16mm pixel pitch,2R1G1B,3906 dots/sqm,P16 Outdoor Full Color LED Display Screen creates high brightness and energy saving,display variable video resources,animations,messages to attract attention. We can see P16 Outdoor Full Color LED Display Screen in many occasions,like Sports,advertising,traffic,entertainment,stage,events,stations,shopping center,airport,exhibitions, car shows, fashion shows, concerts, ceremonies, etc

Applications Occasions:

Sports,advertising,traffic,entertainment,stage,events,stadium,train station,bus station,shopping center,airport,exhibitions, car shows, fashion shows, concerts, ceremonies, etc

Specifications:

P16 Outdoor Full Color LED Display Screen

Pixel configuration	DIP546 2R1G1B
LEDs configuration	Red:wave length: 625~630nm;1100-1300mcd Green:wave length: 525~530nm;1900-2400mcd Blue:wave length: 470~475nm;500-700mcd
Pixel pitch(mm)	16
Pixel density(dots/sqm)	3906
Calibrated brightness(cd/sqm,nit)	8500 nits(adjustable)
Calibrated brightness proportion ratio	R:G:B = 3:6:1
Contrast ratio	4,500:1
Brightness adjustment(dimming)	100 grade auto/manual-adjustment
View angle(degree)(50% brightness)	V60/H120
Color capability	4.4 trillion
Refresh rate(Hz)	>1500 Hz
Frame frequency(Hz)	>60 Hz
Interface port	DVI interface(DVI connector)
Input signal	VGA, Video, AVI, MOV, MPG, DAT, VOB etc.
Protection grade	IP65 front side/IP43 back side
LED Drive	Constant-current
Lifetime(hours)(50% brightness)	100,000 hours
Signal transmission direction	Horizontal
Operating temperature(Celsius degree)	-30 ~ 65
Storage temperature(Celsius degree)	-35 ~ 70
Operation humidity(RH)	0-95%
Operation humidity(RH)	0-99%
Service	Front and back service optional
Control mode	Synchronous & asynchronous available
Communication options	Wire Ethernet, Fiber Ethernet,RF wireless,GPRS
Power	120/240 VAC single phase(50-60Hz)
Maximum power consumption(W/sqm)	850
Average power consumption(W/sqm)	400
Screen operation mode(scan/static)	Static
Module configuration(Pixels quantities of the module)	Length	16
	Height	16
Module dimensions(mm)	Length	256
	Height	256
Cabinet configuration	Length	64
	Height	48
Cabinet dimensions(mm)	Length	1024
	Height	768
	Width	120 (+30~35mm module)
Aspect Ratio(L:H)	4:3 or 16:9
Packaging configuration	1~4 standard cabinets in a packing case
Packing material	Wooden case/carton/flight case(optional)
Packing weight(KG)	net	50KG/m2
	gross	55KG/m2
