P20 Large Full Color Led Display Board , 1r1g1b Dip Outdoor Led Video Wall

P20 Large Full Color Led Display Board , 1r1g1b Dip Outdoor Led Video Wall

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Calibrated Brightness(cd/sqm,nit):	7500 Nits(adjustable)	Pixel Configuration:	DIP346 1R1G1B / DIP546 2R1G1B
Pixel Density(dots/sqm):	2500 Dots/sqm	Pixel Pitch(mm):	20mm
Refresh Rate(Hz):	>1800 Hz	Average Power Consumption:	350 W/sqm
Control Mode:	Synchronous Or Asynchronous	Display Function:	Video
LED Drive:	Constant-current	Screen Operation Mode(scan/static):	Static
Tube Chip Color:	Full Color	Usage:	P20 Outdoor LED Display Screen
View Angle(degree)(50% Brightness):	V60/H120	Scan Driver:	Static Current

P20 Large Full Color LED Display Board , 1R1G1B DIP Outdoor Led Video Wall

Quick Detail:

1) Stable quality:Opto + Silan chipset;

2) High brightness:>6000 nits;

3) Scan driver:static current;

4) Module size(L*W):320*160mm;

Description:

P20 Outdoor Full Color LED Display Screen

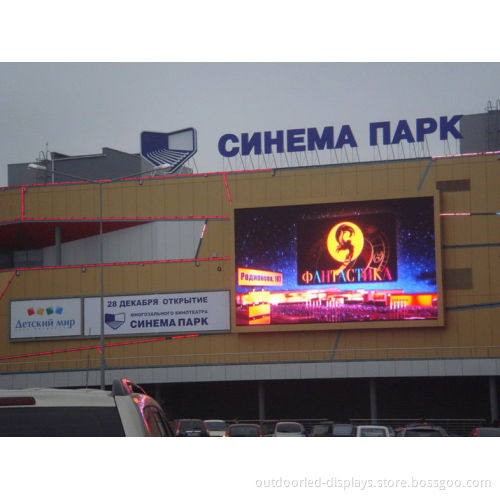

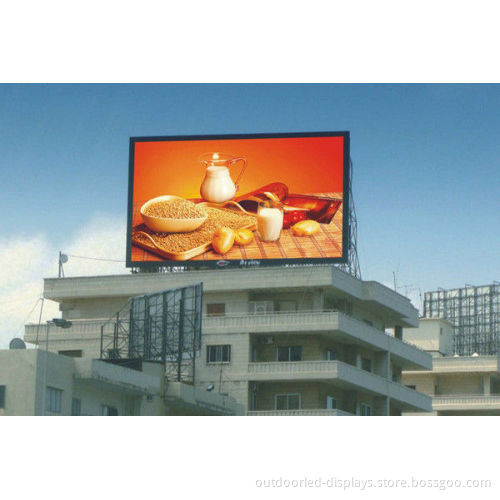

20mm pixel pitch,1R1G1B,2500 dots/sqm,P20 Outdoor Full Color LED Display Screen creates high brightness and energy saving,display variable video resources,animations,messages to attract attention. We can see P20 Outdoor Full Color LED Display Screen in many occasions,like Sports,advertising,traffic,entertainment,stage,events,stations,shopping center,airport,exhibitions, car shows, fashion shows, concerts, ceremonies, etc

Applications Occasions:

Sports,advertising,traffic,entertainment,stage,events,stadium,train station,bus station,shopping center,airport,exhibitions, car shows, fashion shows, concerts, ceremonies, etc

Specifications:

P10mm P12mm P16mm P20mm Outdoor LED Display Screen:

Module	Pitch/mm	P10	P12	P16	P20
	Module size/mm	160*160	192*192	256*128	320*160
	Density of pixel/(dots/m2)	10000	6944	3906	2500
	Pixel composition	1R1G1B	1R1G1B	1R1G1B	1R1G1B
	Led encapsulation	DIP	DIP	DIP	DIP
	Resolution of module	16*16	16*16	16*8	16*8
Main	Optimum viewing distance	≥8	≥10	≥14	≥15
	View angle / °	V60/H120	V60/H120	V60/H120	V60/H120
	Average power consumption/W/pcs	250	160	450	300
	Max power consumption/W/pcs	800	480	1300	1000
	Size of cabinet/mm	960*960	960*960	1024*1024	1280*960
	Resolution of cabinet	96*96	80*80	64*64	64*48
	Frame frequency / Hz/S	≥60	≥60	≥60	≥60
	Refresh rate Hz/S	≥480	≥500	≥600	≥720
	Luminance of white balance	≥6000nits	≥5500nits	≥6500nits	≥5000nits
	Weight of cabinet/kg/pcs	55	50	65	55
	Driving method	1/4 scan		static
	Operation of Environmental Temperature/°C	below 30 to above 65
	IP rating	Front,IP65;Rear,IP43
	Working vlotage	110-220 VAC/+/- 10%
	Grey scale/color	displaying colors≥16.7M(synchronized)
	Brightness adjustment	256 levels of each color(manually), 100 levels of each color(automatically)
	Input signal	RF,S-Video,RGB,RGBH,YUV,YC&Composition ,etc
	Control system	linsn(sending card,receiving cards and Hubs)
	Average of non-failure life	>50,00h
	Life span	>100,000h
	Functionaless dot rate	<0.0001
