Dip546 2r1g1b Outdoor Full Color Led Display Screens With 31.25mm Pixel Pitch

Dip546 2r1g1b Outdoor Full Color Led Display Screens With 31.25mm Pixel Pitch

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Calibrated Brightness(cd/sqm,nit):	5000 Nits(adjustable)	LED Packing:	DIP
Pixel Configuration:	DIP546 2R1G1B	Pixel Density(dots/sqm):	1024
Pixel Pitch(mm):	31.25	Average Power Consumption:	200 W/sqm
Communication Options:	Wire Ethernet, Fiber Ethernet,RF Wireless,GPRS	Control Mode:	Synchronous Or Asynchronous
Display Function:	Video	LED Drive:	Constant-current
Refresh Rate(Hz):	>2000 Hz	Screen Dimension:	Custom
Screen Operation Mode(scan/static):	Static	Tube Chip Color:	Full Color
Usage:	Outdoor Advertising	View Angle(degree)(50% Brightness):	V60/H120

DIP546 2R1G1B Outdoor Full Color LED Display Screens with 31.25MM Pixel Pitch

Quick Detail:

1) Stable quality:Opto + Silan chipset;

2) High brightness:>5000 nits;

3) Scan driver:static current;

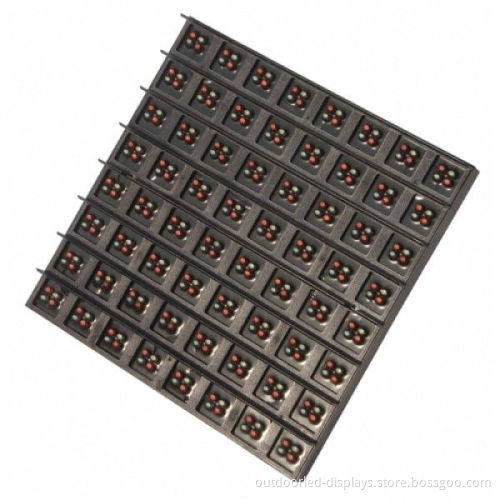

4) Module size(L*W):250*250mm;

Description:

P31.25 Outdoor Full Color LED Display Screen

31.25mm pixel pitch,1R1G1B,1024 dots/sqm,P31.25 Outdoor Full Color LED Display Screen creates high brightness and energy saving,display variable video resources,animations,messages to attract attention. We can see P31.25 Outdoor Full Color LED Display Screen in many occasions,like Sports,advertising,traffic,entertainment,stage,events,stations,shopping center,airport,exhibitions, car shows, fashion shows, concerts, ceremonies, etc

Applications Occasions:

Sports,advertising,traffic,entertainment,stage,events,stadium,train station,bus station,shopping center,airport,exhibitions, car shows, fashion shows, concerts, ceremonies, etc

Specifications:

P31.25 Outdoor Full Color LED Display Screen:

Pixel configuration	DIP546 2R1G1B
LEDs configuration	Red:wave length: 625~630nm;1100-1300mcd Green:wave length: 525~530nm;1900-2400mcd Blue:wave length: 470~475nm;500-700mcd
Pixel pitch(mm)	31.25
Pixel density(dots/sqm)	1024
Calibrated brightness(cd/sqm,nit)	5000 nits(adjustable)
Calibrated brightness proportion ratio	R:G:B = 3:6:1
Contrast ratio	4,500:1
Brightness adjustment(dimming)	100 grade auto/manual-adjustment
View angle(degree)(50% brightness)	V60/H120
Color capability	4.4 trillion
Refresh rate(Hz)	>2000 Hz
Frame frequency(Hz)	>60 Hz
Interface port	DVI interface(DVI connector)
Input signal	VGA, Video, AVI, MOV, MPG, DAT, VOB etc.
Protection grade	IP65 front side/IP43 back side
LED Drive	Constant-current
Lifetime(hours)(50% brightness)	100,000 hours
Signal transmission direction	Horizontal
Operating temperature(Celsius degree)	-30 ~ 65
Storage temperature(Celsius degree)	-35 ~ 70
Operation humidity(RH)	0-95%
Operation humidity(RH)	0-99%
Service	Front and back service optional
Control mode	Synchronous & asynchronous available
Communication options	Wire Ethernet, Fiber Ethernet,RF wireless,GPRS
Power	120/240 VAC single phase(50-60Hz)
Maximum power consumption(W/sqm)	400
Average power consumption(W/sqm)	200
Screen operation mode(scan/static)	static
Module configuration(Pixels quantities of the module)	Length	8
	Height	8
Module dimensions(mm)	Length	250
	Height	250
Cabinet configuration	Length	32
	Height	32
Cabinet dimensions(mm)	Length	1000
	Height	1000
	Width	120 (+30~35mm module)
Aspect Ratio(L:H)	4:3 or 16:9
Packaging configuration	1~4 standard cabinets in a packing case
Packing material	Wooden case/carton/flight case(optional)
Packing weight(KG)	net	50KG/m2
	gross	55KG/m2
