Basic Info

Product Description

Calibrated Brightness(cd/sqm,nit):	6500 Nits(adjustable)	LED Packing:	SMD
Pixel Configuration:	SMD3535 1R1G1B 3 In 1	Pixel Density(dots/sqm):	15625
Pixel Pitch(mm):	8	Average Power Consumption:	300W/sqm
Communication Options:	Wire Ethernet, Fiber Ethernet,RF Wireless,GPRS	Control Mode:	Synchronous Or Asynchronous
Display Function:	Video	LED Drive:	Constant-current
Refresh Rate(Hz):	>1200 Hz	Scan Driver:	1/4 Scan
Screen Dimension:	Custom	Screen Operation Mode(scan/static):	1/4
Tube Chip Color:	Full Color	Usage:	Outdoor Advertising
View Angle(degree)(50% Brightness):	V120/H120

1R1G1B P8 Outdoor Full Color LED Display , 15625dots/m2 Flight Cabinet Stage LED Screen

Quick Detail:

1) Stable quality:Opto + Silan chipset;

2) High brightness:>6500 nits;

3) Scan driver:1/4 current;

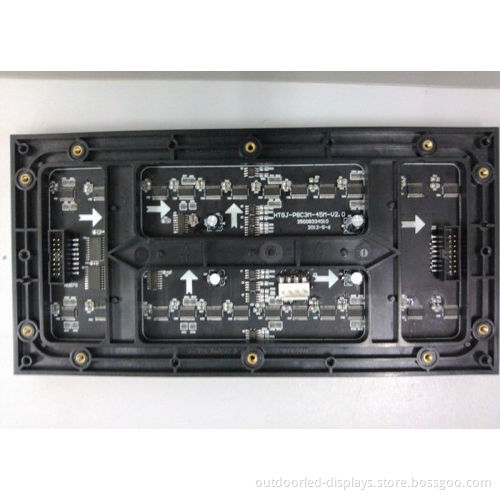

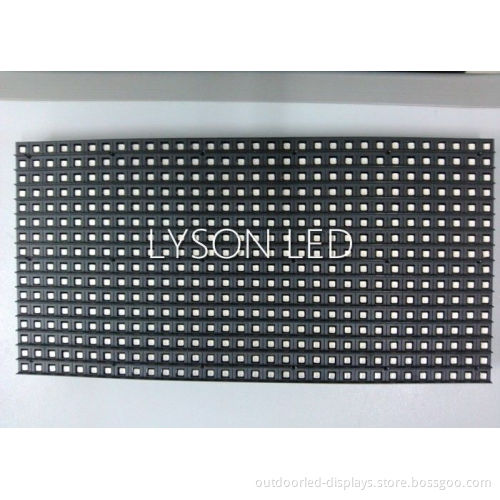

4) Module size(L*W):256*128mm;

Description:

P8 SMD Outdoor Full Color LED Display Screen

8mm pixel pitch,1R1G1B,15625 dots/sqm,P8 SMD Outdoor Full Color LED Display Screen creates high brightness and energy saving,display variable video resources,animations,messages to attract attention. We can see P8 SMD Outdoor Full Color LED Display Screen in many occasions,like Sports,advertising,traffic,entertainment,stage,events,stations,shopping center,airport,exhibitions, car shows, fashion shows, concerts, ceremonies, etc

Applications Occasions:

Sports,advertising,traffic,entertainment,stage,events,stadium,train station,bus station,shopping center,airport,exhibitions, car shows, fashion shows, concerts, ceremonies, etc

Specifications:

P8mm Outdoor Full Color LED Display Screen:

Pixel configuration	SMD3535 /SMD2828 1R1G1B 3 in 1
LEDs configuration	Red:wave length: 625~630nm;300-400mcd Green:wave length: 525~530nm;600-800mcd Blue:wave length: 470~475nm;100-150mcd
Pixel pitch(mm)	8
Pixel density(dots/sqm)	15625
Calibrated brightness(cd/sqm,nit)	6500 nits(adjustable)
Calibrated brightness proportion ratio	R: G: B = 3:6:1
Contrast ratio	4,500:1
Brightness adjustment(dimming)	100 grade auto/manual-adjustment
View angle(degree)(50% brightness)	V120/H120
Color capability	4.4 trillion
Refresh rate(Hz)	>1200 Hz
Frame frequency(Hz)	>60 Hz
Interface port	DVI interface(DVI connector)
Input signal	VGA, Video, AVI, MOV, MPG, DAT, VOB etc.
Protection grade	IP65 front side/IP43 back side
LED Drive	Constant-current
Lifetime(hours)(50% brightness)	100,000 hours
Signal transmission direction	Horizontal
Operating temperature(Celsius degree)	-30 ~ 65
Storage temperature(Celsius degree)	-35 ~ 70
Operation humidity(RH)	0-95%
Operation humidity(RH)	0-99%
Service	Front and back service optional
Control mode	Synchronous & asynchronous available
Communication options	Wire Ethernet, Fiber Ethernet,RF wireless,GPRS
Power	120/240 VAC single phase(50-60Hz)
Maximum power consumption(W/sqm)	600
Average power consumption(W/sqm)	300
Screen operation mode(scan/static)	1/4
Module configuration(Pixels quantities of the module)	Length		32
	Height		16
Module dimensions(mm)	Length		256
	Height		128
Cabinet configuration	Length		128
	Height		96
Cabinet dimensions(mm)	Length		1024
	Height		768
	Width		120(+module thickness)
Aspect Ratio(L:H)	4:3 or 16:9
Packaging configuration	1~6 standard cabinets in a packing case
Packing material	Wooden case/carton/flight case(optional)
Packing weight(KG)	net	35KG/m2
	gross	40KG/m2 (Iron)
