Basic Info
Basic Info
Product Description
Product Description
Pixel Density(dots/sqm): 3906 Dots/m2 Pixel Pitch(mm): 16
Display Function: Video Pixel Configuration: SMD3535
Screen Operation Mode(scan/static): Static Tube Chip Color: Full Color
View Angle(degree)(50% Brightness): V140/H140 Pixel Composition: 1R1G1B

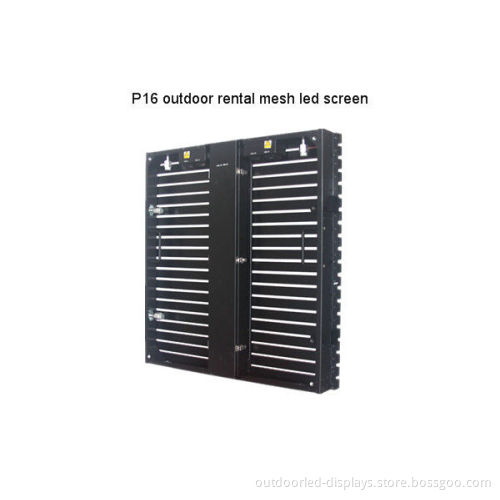

Commercial P16 Outdoor Advertising LED Screen , Mesh Rental Flexible Led Curtain Display



Quick Detail:



1) Super light and slim:6 ~ 9KG/ cabinet;

2) Pixel pitch from 6.25 to 20mm;

3) Easy lock system,no need any tools to install or uninstall;

4) Economic solution to install traditional indoor led display;

5) Mainly use for stage background;





Description:

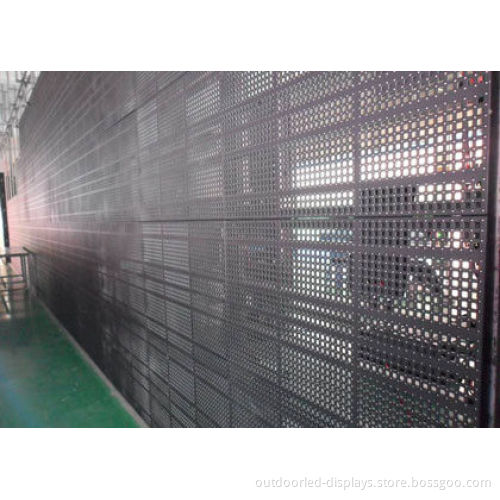

Rental outdoor P16 led curtain wall



The design has the features of "light","thin", "fine", "penetrate ". Convenient installation, withstand wind and dustproof. Application for the stage and surrounding.



This product has been applicated at many fields such as stage, bar, entertainment TV and so on, it has been shown the unique artistic charm and aesthetic feeling of space imagination.



The brightness can be adjusted from 500 nits to 2000 nits without damaging the gray level, matching with calibration technology, it has the great expressive color.



The product is with convenient installation, and flight connectors connecting. Now it has become the most popular fashion elements at the digital stage and bar.



High refresh frequency can meet the requirement of the shooting on the stage, presents the perfect effect.

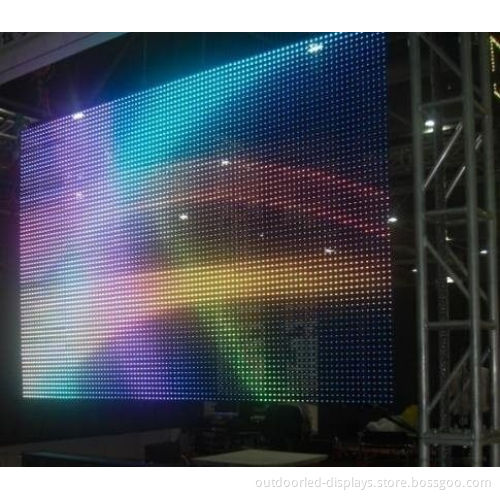

Applications Occasions:



Entertainment,stage,events,exhibitions,car shows, fashion shows, concerts, ceremonies, etc





Specifications:



Rental outdoor P16 led curtain wall





Pitch/mm P12 P16 P18
Density of pixel/(dots/m2) 6944 3906 3086
Pixel composition 1R1G1B 1R1G1B 1R1G1B
Led encapsulation SMD 3535 SMD 3535 SMD 3535
Driving method 1/2 scan  static static
View angle / ° V140/H140 V140/H140 V140/H140
Average power consumption/W/M2 350W 420W 350W
Max power consumption/W/M2 850W 980W 780W
Module size/mm 288*288mm 640*20mm 720*12mm
Size of cabinet/mm 576*576mm 640*640mm 720*720mm
Refresh rate Hz/S ≥2000 ≥2000 ≥2000
Luminance of white balance ≥4500nits ≥5000nits ≥5000nits
Weight of cabinet 11KG 10.4KG 12.5KG
Operation of Environmental Temperature/°C   -20  ~ 50
IP rating front:IP65   back:IP54
Working vlotage 110-220 VAC/+/- 10% ; 50~60HZ
Grey scale/color displaying colors≥16.7M(synchronized)
Brightness adjustment

256 levels of each color(manually),

100 levels of each color(automatically)

Input signal RF,S-Video,RGB,RGBH,YUV,YC&Composition ,etc
Control system LINSN(sending card,receiving cards and Hubs);Nova
Average of non-failure life >50,000 hours
Life span >100,000hours
Functionaless dot rate <0.0001













Competitive Advantages:



1) Stable quality and fast Response;

2) Short delivery,effective production;

3) Sample order,trial order be acceptable;

4) Good communication;

5) 2 years warranty;
