High Brightness 80lm Rgb Led Module, Dc 12v 3 Chips 5050 Smd Led Module, Rex35

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

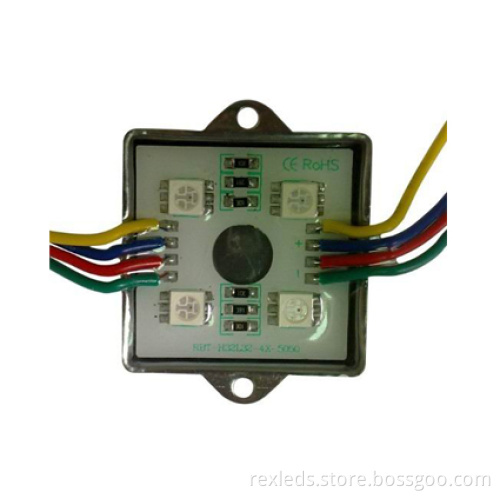

High Brightness 80lm RGB Led Module, DC 12v 3 Chips 5050 Smd Led Module, REX35

Application

1. Electronic signs

2. Commercial advertising signs

3. Channel letters

4. LED light strips

5. Automotive lighting

6. Festival decoration

7. Advertisement light-box

Specification

Dimension	35354mm
LED No	4 pcs 3-chips 5050 SMD LED Beam angle 150-180Degree
Voltage	Input DC12v(e)/Input DC12v~24v.(s)
Current	60mA
Watts	1.44w
Lumen	80lm
Cover	aluminum housing, ABS Milky
Life	50, 000hrs
Cable	-Yellow+RGB
Color	Seven fixed color, seven color skip, seven color gradual change, seven colors flash
Certificate	CE:BTRE0708181359/RoHS:BTRS0708310889.SGS: MIC-QIP-AS072113
IP	IP68 The PCB be covered by resin.
Part No	REX35-4RGB

Features

·Perfect color Mixing

REXLEDs 4 RGB SMD LEDs waterproof Module adopts 4pcs 3-chips SMD in one led lamp so colours change inside each LED for perfect colour mixing

·High Brightness

REXLEDs 4 RGB SMD LEDs waterproof Module adopts 4pcs 3-chip SMD LEDs as its luminous body in high intensity and can emit higher brightness at lower cost. Bigger chip in LED. No spot. No shadow

·Excellent heat dissipation

REXLEDs 4 RGB SMD LEDs waterproof Module house inside aluminum crust with excellent heat dissipation.

·Easy Installation

REXLEDs 4 RGB SMD LEDs waterproof Module can be easily installed with 3M double-sided sticking tape and connectors.

·Extended Life

With little heat, proper drive characteristics and high quality LEDs, REXLEDs 4 RGB SMD LEDs waterproof Module have a life time of more than 30, 000 hours.

·Totally waterproof

With IP68 protection degree, REXLEDs 4 RGB SMD LEDs waterproof Module can operate normally in cloudy, rainy, desert, and snowy weather conditions and pool. The SMD LEDs are totally covered by resin.

·Friendly environment

Pb free. With CE/RoHS/SGS certificate, REXLEDs 4 RGB SMD LEDs waterproof Module s are up to 60% more energy efficient than neon.

·Safe Application

Low voltage DC12V, safety and stable. Free maintenance
