Vertical rebar double bending center
- Incoterm:
- FOB
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 30 Days
- Transportation:
- Ocean
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 15sets/mon |
| Supply Ability: | 15 |
| Incoterm: | FOB |
| Certificate: | ISO |
| Transportation: | Ocean |
Description:

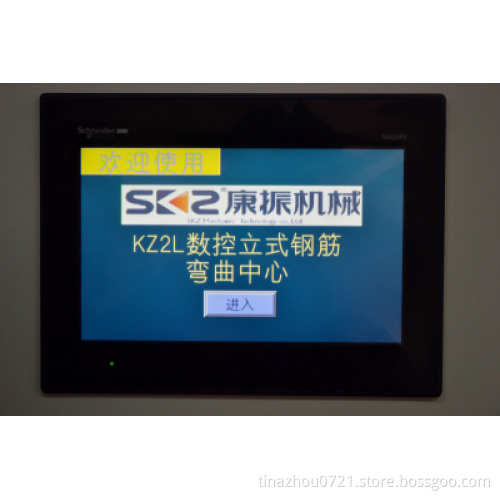

1.Imported PLC and touch screen.
2. Central soft rebar lock.
3. Heaf-treated plate to be wearable.
4. Bending shaft controlled by servo.
5. Moved bending unit and automatic gauge system.
6. High strength rail for long life.
7. Bending &clamping unit to enhance precision.
8. Extensible shaft to bend rebar in bi-direction.
9. Heavy loading shift for large batch material.
10. More rebar bended in one time.
11. Large storage capacity can save more than 100 geometric graphics.
12. More angle in one loop.
13. Control systems: SCHNEIDER, INOVANCE, SIEMENS, MITSUBISHI, and PANASONIC.
14. Greatly enhanced efficiency can best effectively provide 5000pieces per
day.
15. Suitable for strand Diameter for 10-32
Parameters:
|
Model |
KZ2L32 |
||||||||||
|
Dimensions (mm) L*W*H |
12000*2200*1600 |
||||||||||
|
Max Bending Angle |
UP |
180 |
|||||||||
|
DOWN |
120 |
||||||||||
|
Max Bending Size(mm) |
10000 |
||||||||||
|
Min Bending Size (mm) |
90 |
||||||||||
|
Min Bending Side Length |
(10),(520mm) |
||||||||||
|
(32),(580mm) |
|||||||||||
|
Length Tolerance (mm) |
+-2 |
||||||||||
|
Bending Tolerance |
+-0.5 |
||||||||||
|
Speed Control |
CNC Servo motor |
||||||||||
|
Installed Power |
14KW |
||||||||||
|
Installed Voltage(V HZ) |
380V 50Hz |
||||||||||
|
Moving Speed(m/s) |
0.5-1 |
||||||||||
|
Working |
-5-40 |
||||||||||
|
Cylinder Pressure(Mpa) |
0.6 |
||||||||||
|
manufacture range |
Strand Diamete |
10 |
12 |
14 |
16 |
20 |
22 |
25 |
28 |
32 |
|
|
Nos.to be sheared |
7 |
6 |
5 |
4 |
3 |
2 |
2 |
1 |
1 |
||
|
Weight(kg) |
5500 |
||||||||||
