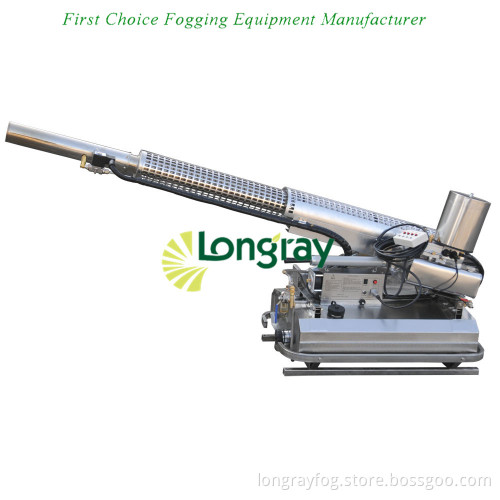

Longray truck mounted fogging machine for pest control

Feature

l  The universal High-Performance Thermal Fog Generator,

l  50 HP engine power, flow rate up to 100 l/h and effective penetration of the fog in closed spaces.

l  Whether stationary in closed spaces or mounted on vehicles for outdoor application,

l  the TS-95 suit for large scale area quick and effective control.

l  This unit features a remote control system enable operation from the driver cabin.

l  The unit includes an electric start system for controlling start, stop fogging, lift up and put down fogging tube through the remote control.

l  We only choose best production materials, such as using high-grade stainless steel produce chemical, fuel tank, fog tube and resonator, cooling jacket and protective shield, to guarantee reliability in daily application and long-durability of the equipment.

l  We only choose best anti-corrosive material to guarantee long life use, such as all seals, gaskets,and diaphragm in contact with chemicals solution are made of Teflon and Viton.

Application

l  Capable of dispense water and oil based chemicals, such as pesticide, fungicide, disinfectant,

miticide, poultry vaccine, and odor neutralizer.

l  The unit has been widely used for mosquito carriers of malaria, yellow-fever, dengue fever, pest control, public health protection, sanitation professional.

Technical specification

Model:TS-95

Weight, empty 47kg

Dimensions ( L x W x H)   200 X 60 X 75 cm

Weight, empty (shipping data)         100 Kg

Dimensions (L x W x H),(shipping data)   213 x 67 x 70 cm

Chemical tank capacity   60 L

Fuel tank capacity    5 L

Fuel consumption    4 L/h

Performance of combustion chamber     36.8 KW / 50 HP

Flow rate (oil)  0-100 L/h

Flow rate (water)     40 L/h

Battery electricity   12 V lithium battery

Pressure in chemical tank        0.25 bar

Pressure in fuel tank        0.06 bar
