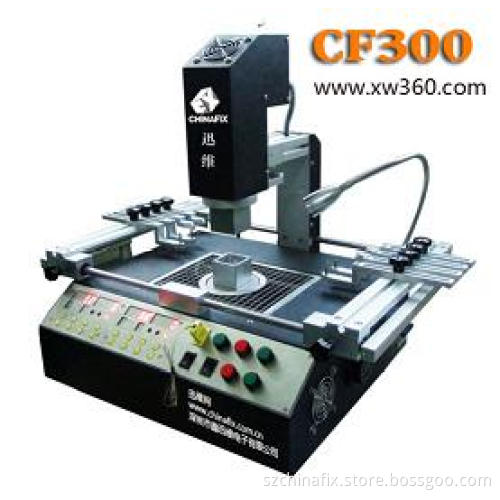

CHINAFIX CF300 Mini IR BGA rework machine

CHINAFIX CF300 Mini IR BGA rework machine

Get Latest Price

Payment Type:: Western Union

Incoterm:: FOB

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Delivery Time:: 7 Days

Transportation:: Ocean, Land, Air

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Guangdong
Productivity:	20/week
Payment Type:	Western Union
Incoterm:	FOB
Certificate:	CE ROSH
Transportation:	Ocean,Land,Air

Product Description

CF300 Working Parameter:

Model	Chinafix CF300
Solder Type	Leaded Solder/Lead Free
SMD type	Micro BGA,BGA,CSP,QFP
PCB Thickness	0.5mm~4mm
PCB Size	80mm80mm 415mm325mm
Heating Mode /Power (Upper)	Hot-blast air /650W
Heating Mode/Power(Bottom)	Hot-blast air /650W
Preheating Mode/ Power	IR/ 700W
PCB Location Mode	Shape or Tongs
Driving Mode	Driving By Stepping Motor
Control Mode	Temperature Control Instrument
Temperature Range	Room temperature ~400°C
Main Power	2000W
Supply Voltage	110V/220V
Machine Dimension	530mm(L)385mm(W)500mm(H)
Machine Weight	18KG

Machine Characteristic
1. Hot air parts adopt exported ceramics heating chips which heats uniformly and

wears well.
2. The support design of three heating area,fine turning to support, in case of

welding area to sink
3. Upper & bottom hot air control temperature independently, it can store 10 groups

and 16 stages temperature curve.
4. Three temperature zones can be controlled independently to achieve reballing and

drying etc function
5. The third temperature zone adopts black infrared heating tube + exported

temperature switch control, heating fastly, temperature-control accurately.
6. Machine part adopts high oxidation treatment, main machine chassis adopts

thicken material in case of machine modification.
7. Upper heating adopts non-labour stepping motor driver, it can be fine adjusted

to relative position exactly.
