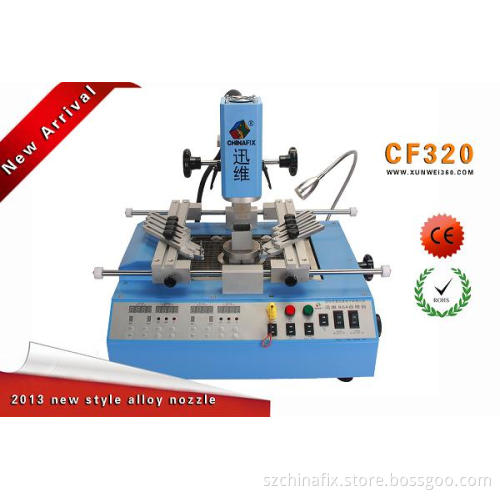

minitype CHINAFIX CF320 BGA rework station

CF320 Working Parameter

Model:CHINAFIX CF320

Solder Type:Leaded Solder/Lead Free

SMD Type:Micro BGA,BGA,CSP,QFP

PCB Thickness:0.5mm~4mm

PCB Size:80mm*80mm-415mm*325mm

Heating Mode/Power(upper):Hot-blast air /650W

Heating Mode/Power(bottom):Hot-blast air /650W

Preheating Mode/Power:IR / 1000W

PCB Location Mode:Shape or Tongs

Driving Mode:Gear,Rack

Control Mode:Temperature Control Instrument

Temperature Range:Room temparature0~400°C

Main Power:2300W

Supply Voltage:110V/220V

Machine Dimension:530mm(L)*385mm(W)*500mm(H)

Machine Weight:22KG

CF320 Product Feature:

1.Three warm areas heating individually,upper and bottom warm area heating by hot blast-air,upper and bottom temperature control instrument can store 16 sections with 10 group temperature curve,it can be invoked at any time according to the different BGA.The bottom warm area heating by infrared,and the infrared region can be heated individually,it can adjust the heating area and output power according to the actual requirements.Temperature accuracy control about 1°C.

4.Multifunctional PCB location holder can be moved to X direction,it's convenient and swift to locate PCB board and equipped with U type neck,crocodile clip,and pothook designed by ourselves,it's suitable to set up and locate all kinds of shapeless mainboard rapidly.

5.Equipped with highlight working light,to insure that working environment bright enough.

6.Using the high-power overflow fan,it can cool the PCB board rapidly,then improving working efficiency.
7.The ingenious boundary dimension,popular price is more suitable for using by minitype maintenance department.
