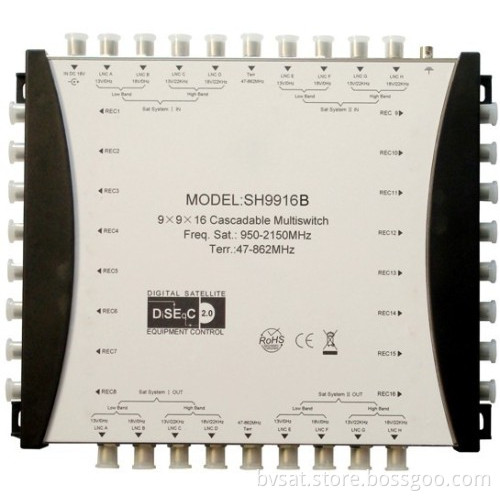

Product Name: 9 in 9 out 16 subscribers cascade multiswitch
The cascade system is completed by adding recommended amplifier and power adaptor, see examples of utilization below. Please note that high quality coaxial cable is required for the trunk lines:
Model Name: SH9916B
Feature:
Specification:
The cascade system is completed by adding recommended amplifier and power adaptor, see examples of utilization below. Please note that high quality coaxial cable is required for the trunk lines:
- at least double-shielded, 110 dB screening for the short cascades
- quadruple-shielded, 130 dB screening for the long cascades
- all cable feeds must be single-run
Model Name: SH9916B
Feature:
| 8 satellite IF 1 terrestrial TV inputs to 9+16 outputs for satellite receivers | ||||||
| Allow use of 2 Quatro or up to 4 Dual or Twin LNBs. | ||||||
| Single coaxial cable conveys both satellite and terrestrial signal. | ||||||
| External Switching Power Supply can set up the operational power of LNB. | ||||||
| Sheet metal housing with plastic holder. | ||||||
| All users can view all channels select satellite signal by analogue commands 13V/18V\ | ||||||
| 0/22kHz tone or DiSEqC2.0\DiSEqC1.0 and Tone Burst signal provided by receivers | ||||||
| Very low tap loss Minimum through loss |
Specification:
| ITEM | TYP | REMARK | |||||
| Frequency response | 47-2150MHz | ||||||
| Inputs | 8SAT+1 Terr | F connectors | |||||
| Outputs | 9+16 TAP | F connectors | |||||
| Trunk loss | Terr 47-862MHz | 5dB | |||||
| Sat 950-2150MHz | 5dB | ||||||
| Tap loss | Terr 47-862MHz | 8dB | |||||
| Sat 950-2150MHz | 1dB | ||||||
| Return Loss | Terr in 47-862MHz | 12dB | |||||
| Sat in 950-2150MHz | 12dB | ||||||
| Terr out 47-862MHz | 8dB | ||||||
| Sat out 950-2150MHz | 8dB | ||||||
| Isolation | LNB-LNB 950-2150MHz | 35dB | |||||
| OUT-OUT | Terr 47-862MHz | 26dB | |||||
| Sat 950-2150MHz | 30dB | ||||||
| H/V | Sat 950-2150MHz | 28dB | |||||
| Switching voltage | 15±1V | ||||||
| Switching commands | 13V,18V,13V/22KHz, 18V/22KHz DiSEqC2.0 | ||||||
| Switching Adapter | 18V 1.6A | Optional | |||||
