Mini Size Modern Design 8 Selectable Channels Hd 5.8 Ghz Wireless A/v Sender
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description

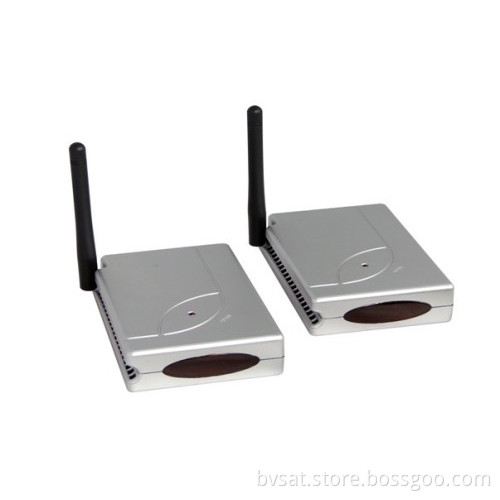

Product Name: Mini size modern design 8 selectable channels HD 5.8 GHz Wireless A/V sender
Feature:
Model Name: HD502T/HD502R
Feature:
| Audio/ Video System----502S | ||||||
| * Mini size with modern design | ||||||
| * With 5.8GHz Frequency | ||||||
| * External Omni-directional antenna | ||||||
| * NTSC / PAL video format available | ||||||
| * With 8 selectable channels (Dip Switch) | ||||||
| * Remote control the A/V source with IR extender | ||||||
| * Transmit the crisp A/V signal with radio frequency | ||||||
| * Compatible with Camcorder or CMOS camera application |
Model Name: HD502T/HD502R
| ITEM | HD502T | HD502R | ||||
| 5.8GHz antenna | External Omni-directional antenna | External Omni-directional antenna | ||||
| 433MHz antenna | Internal omni-directional antenna | Internal Omni-directional antenna | ||||
| Transmit power | 23 dBm(Typical) | – | ||||
| Sensitivity | – | –86dBm type | ||||
| Frequency band | 5.725GHz~5.865GHz | 5.725GHz~5.865GHz | ||||
| Channel Customer | 8 selectable channels | 8 selectable channels | ||||
| Input format | Available in NTSC or PAL | – | ||||
| Output format | – | Available in NTSC or PAL | ||||
| Video input level | 1 Vp-p@75Ω | – | ||||
| Audio input level | 1 Vp-p@600Ω | – | ||||
| Video output level | – | 1 Vp-p@75Ω | ||||
| Audio output level | – | 1 Vp-p@600Ω | ||||
| Input / output Connector | 3.5mm stereo Male plug to 3 RCA | 3.5mm stereo Male plug to 3 RCA | ||||
| Operating condition | Indoor usage recommend | Indoor usage recommend | ||||
| Remote control frequency | 433.92MHz | 433.92MHz | ||||
| IR carrier frequency | 32~38KHz | 32~38KHz | ||||
| Power Consumption | 12Volt DC, 500mA(Typical) | 12Volt DC, 500mA(Typical) | ||||
| Operating Temperature | -10℃ ~ +60℃ | -10℃ ~ +60℃ | ||||
| Dimension/Weight | 22*16*9 cm / 0.99 KG | |||||
| Carton Size/ Quantity | 45*38*33 cm / 15 PCS | |||||
