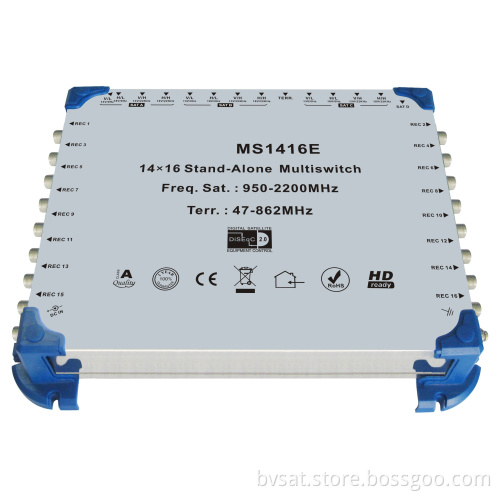

Products Name: Turkey market 14in 16out stand-alone satellite multiswitch

High quality, High Isolation
low signal loss, High output
low signal return.

Model Name: MS1416E

ITEM 14/8S 14/16S 14/24S 14/32S

Number of inputs 13SAT, 1 Terr. 13SAT, 1 Terr. 13SAT, 1 Terr. 13SAT, 1 Terr.

Subscriber outputs 8 16 24 32

Frequency range ( SAT) 950 ~ 2250 MHz 950 ~ 2250 MHz 950 ~ 2250 MHz 950 ~ 2250 MHz

Frequency range ( Terr.) 47~862 MHz ( ODM: 5-862) 47~862 MHz ( ODM: 5-862) 47~862 MHz ( ODM: 5-862) 47~862 MHz ( ODM: 5-862)

SAT. Loss 0 dB 3 dB 3 dB 5 dB

Terr. Gain – 2 dB 0 dB 2 dB 3 dB

Switching Isolation 30 dB 30 dB 30 dB 30 dB

Isolation ( SAT.) ( out - out ) 30 dB 30 dB 30 dB 30 dB

Isolation ( Terr.) ( out - out ) 25 dB 25 dB 25 dB 25 dB

Rejection 28 dB 28 dB 28 dB 28 dB

Return Loss In 10 dB 10 dB 11 dB 11 dB

out 8 dB 8 dB 8 dB 8 dB

Output Level Sat. ( IMD3-35dB ) 100 dBμV 100 dBμV 100 dBμV 100 dBμV

Output Level Terr. ( IMD3-35dB ) 84 dBμV 83 dBμV 84 dBμV 82 dBμV

Power supply 90 ~ 260 Vac/ 47 ~ 63 Hz 90 ~ 260 Vac/ 47 ~ 63 Hz 90 ~ 260 Vac/ 47 ~ 63 Hz 90 ~ 260 Vac/ 47 ~ 63 Hz

Max.Current Pass to LNB 1000 mA 1000 mA 1200 mA 1200 mA

Send your message to this supplier

* From:
* To:

Mr. Johnny Ho
* Messages:

Enter between 20 to 4,000 characters.

ITEM	14/8S	14/16S	14/24S	14/32S
Number of inputs	13SAT, 1 Terr.	13SAT, 1 Terr.	13SAT, 1 Terr.	13SAT, 1 Terr.
Subscriber outputs	8	16	24	32
Frequency range ( SAT)	950 ~ 2250 MHz	950 ~ 2250 MHz	950 ~ 2250 MHz	950 ~ 2250 MHz
Frequency range ( Terr.)	47~862 MHz ( ODM: 5-862)	47~862 MHz ( ODM: 5-862)	47~862 MHz ( ODM: 5-862)	47~862 MHz ( ODM: 5-862)
SAT. Loss	0 dB	3 dB	3 dB	5 dB
Terr. Gain	– 2 dB	0 dB	2 dB	3 dB
Switching Isolation	30 dB	30 dB	30 dB	30 dB
Isolation ( SAT.) ( out - out )	30 dB	30 dB	30 dB	30 dB
Isolation ( Terr.) ( out - out )	25 dB	25 dB	25 dB	25 dB
Rejection	28 dB	28 dB	28 dB	28 dB
Return Loss In	10 dB	10 dB	11 dB	11 dB
out	8 dB	8 dB	8 dB	8 dB
Output Level Sat. ( IMD3-35dB )	100 dBμV	100 dBμV	100 dBμV	100 dBμV
Output Level Terr. ( IMD3-35dB )	84 dBμV	83 dBμV	84 dBμV	82 dBμV
Power supply	90 ~ 260 Vac/ 47 ~ 63 Hz	90 ~ 260 Vac/ 47 ~ 63 Hz	90 ~ 260 Vac/ 47 ~ 63 Hz	90 ~ 260 Vac/ 47 ~ 63 Hz
Max.Current Pass to LNB	1000 mA	1000 mA	1200 mA	1200 mA
