Turkey Market Professional 47-2250 Mhz 14 Input 14 Output 32 Subscriber Cascade Satellite Multiswitch

Product Name: Turky market professional 47-2250 MHz 14 input 14 output 32 subsriber cascade satellite multiswitch

Feature:
13 satellite IF + 1 Terrestrial TV inputs
Versions for 4, 6, 8, 12, 16, 20, 24, 32 subscribers outputs.
Built-in amplifiers
Easy installation
Low power consumption thanks to new generation components
F connector power adaptor.

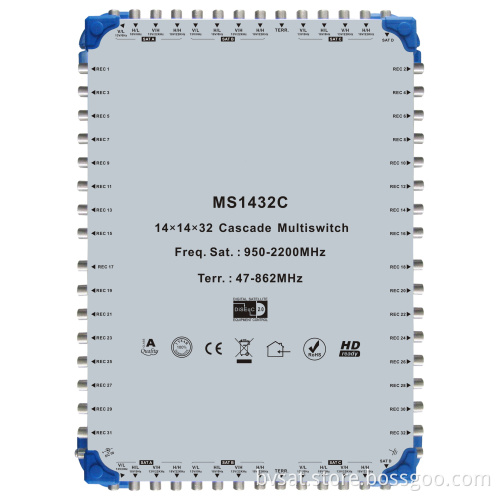

Model Name: MS141432C
Specification:

ITEM	14/8S	14/16S	14/24S	14/32S
Number of inputs	13SAT, 1 Terr.	13SAT, 1 Terr.	13SAT, 1 Terr.	13SAT, 1 Terr.
Subscriber outputs	8	16	24	32
Frequency range ( SAT)	950 ~ 2250 MHz	950 ~ 2250 MHz	950 ~ 2250 MHz	950 ~ 2250 MHz
Frequency range ( Terr.)	47~862 MHz ( ODM: 5-862)	47~862 MHz ( ODM: 5-862)	47~862 MHz ( ODM: 5-862)	47~862 MHz ( ODM: 5-862)
SAT. Loss	0 dB	3 dB	3 dB	5 dB
Terr. Gain	– 2 dB	0 dB	2 dB	3 dB
Switching Isolation	30 dB	30 dB	30 dB	30 dB
Isolation ( SAT.) ( out - out )	30 dB	30 dB	30 dB	30 dB
Isolation ( Terr.) ( out - out )	25 dB	25 dB	25 dB	25 dB
Rejection	28 dB	28 dB	28 dB	28 dB
Return Loss In	10 dB	10 dB	11 dB	11 dB
out	8 dB	8 dB	8 dB	8 dB
Output Level Sat. ( IMD3-35dB )	100 dBμV	100 dBμV	100 dBμV	100 dBμV
Output Level Terr. ( IMD3-35dB )	84 dBμV	83 dBμV	84 dBμV	82 dBμV
Power supply	90 ~ 260 Vac/ 47 ~ 63 Hz	90 ~ 260 Vac/ 47 ~ 63 Hz	90 ~ 260 Vac/ 47 ~ 63 Hz	90 ~ 260 Vac/ 47 ~ 63 Hz
Max.Current Pass to LNB	1000 mA	1000 mA	1200 mA	1200 mA
