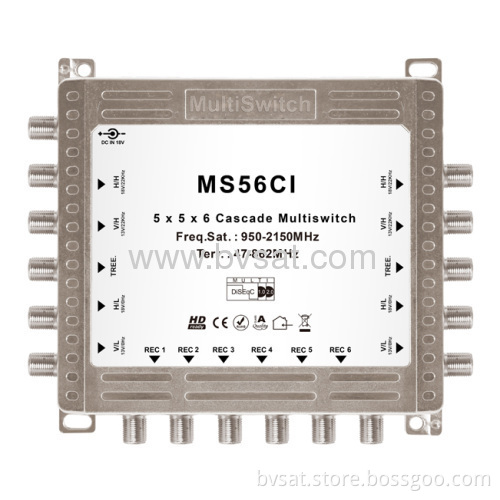

Digital Hd Tv Compatible 6 Subscribers Zinc Die Casting Cascadable Multiswitch

Product Name: digital HD TV compatible 6 subscribers   zinc die casting cascadable multiswitch


Working application diagram:

A multiswitch allows you to feed many satellite TV receivers in various rooms with satellite TV signals from a QUATTRO LNB on your dish. In addition, if you wish, you can also feed aerial signals from a UHF TV aerial or, with the addition of a V24-310 triplexer, any or all of UHF TV (analogue and/or digital), FM radio or DAB.

Feature:

4 satellite IF and 1 terrestrial TV inputs for 6 satellite receiver.
4 satellite IF inputs selected by 13V\18V\22KHz signal.
Low insertion loss, high isolation and return loss.
SAT-IF-PATHs to the subscribers are active and supplied by the receiver.
Design good for indoor usage.

Specifications:

Frequency Range		Terr.:47~862MHz SAT:950~2150MHz
Inputs		4 SAT+1 Terr.		F connectors
Outputs		8 Receiver		F connectors
Thru Loss	Terr.	3dB	4dB
	SAT	3dB	4dB
TAP Loss	Terr.	4dB	6dB
	SAT	0dB	2dB
Return Loss	Terr.	12dB	10dB
	SAT	12dB	10dB
Stop band attenuation	Terr.	28dB	25dB
	SAT	28dB	25dB
Isolation	H/V	30dB	25dB
	REC-REC	30dB	25dB

The other related model products photo as following:






Reasearch and development:

We has a team of over 7 highly skilled and qualified engineers, serving our customers with innovative designs for the reception of satellite, terrestrial and cable TV signals. When needed, we can provide custom designs for specific needs and perform contract engineering for OEM customers.

We work with specialized divisions of universities, technology institutes and industry partners to guarantee the implementation of the latest technological evolutions on the market.

R&D capabilities included:

·RF, Digital Video, Software, Multiband filter and mechanical design teams

·software for RF simulation, electronic design

·modern measurement and test equipment including DVB-, EVM-, TS- analyzers

·environmental test room, including IR temperature analysis

·EMC compliance test capabilities
