Low Power Consumption 5-1000 Mhz 20 Db Gain Inline Amplifier
  • Low Power Consumption 5-1000 Mhz 20 Db Gain Inline Amplifier
Low Power Consumption 5-1000 Mhz 20 Db Gain Inline Amplifier

Low Power Consumption 5-1000 Mhz 20 Db Gain Inline Amplifier

Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Product Description
Product Description

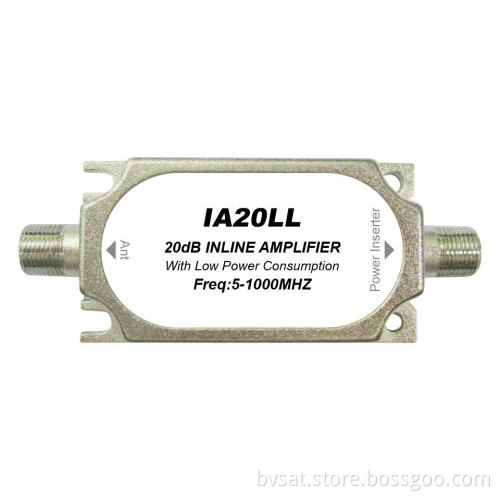

Product Name: Low power consumption 5-1000 MHz 20 dB Gain inline amplifier


                                                                                                       Model Name: IA20LL
Feature:

low power consumption 5-1000 MHz 20 dB Gain inline amplifier
Boost Weak TV/Cable Signals over Long Cable Runs
Powered by the receiver via coaxial cable
Design for in line boosting of SAT IF signal
Low inter-modulation distortion
500mA power pass for LNB operation requirement
Output level test according to EN50083-3 or -5
Screening factor: Compliant to Class B
Zinc die-casting housing, nickel-plated.

ITEM Typical
   Frequency response 5-1000 MHz
   Gain 20 dB
   Noise Figure 5 dB
   Return Loss 8 dB
   Output Level SAT: 110@ 35 dB IMA3; Terr.: 105 @ 65 dB IMA3
   Power supply 13-18V DC, 40mA
