2013 New Series 2x12 Directv Multiswitch For Satellite Tv Equipment
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description

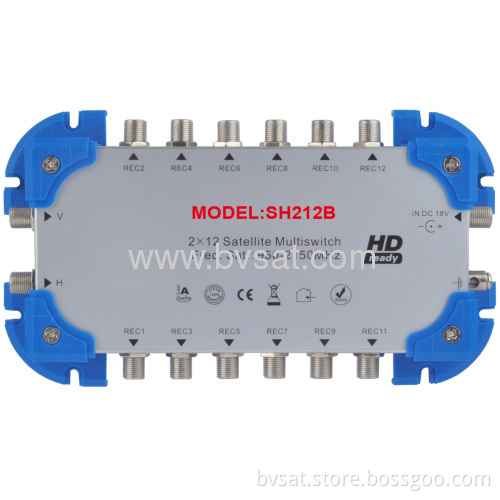

Product name: 2013 new series 2x12 directv multiswitch for satellite TV equipment
1.2 satellite inputs to 12 outputs for satellite receivers
2. Allow use of 1 Quatro or up to 2 Dual or Twin LNBs.
3.Single coaxial cable conveys both satellite.
4.External Switching Power Supply can set up the operational power of LNB.
5.Sheet metal housing with plastic holder.
6.Very low tap loss,Minimum through loss.
Detail show:
Similar products show:
Model NO.SH216B
Model NO.SH224BX
1.2 satellite inputs to 12 outputs for satellite receivers
2. Allow use of 1 Quatro or up to 2 Dual or Twin LNBs.
3.Single coaxial cable conveys both satellite.
4.External Switching Power Supply can set up the operational power of LNB.
5.Sheet metal housing with plastic holder.
6.Very low tap loss,Minimum through loss.
| Specifications | ||||
| Specifications Item | Typical | QC Limit | Remark | |
| Frequency Range | SAT:950~2150MHz | |||
| Inputs | 2 SAT | F connectors | ||
| Outputs | 12 Receiver | F connectors | ||
| Insertion Loss | 4dB | 5dB | ||
| Return Loss | 12dB | 10dB | ||
| Isolation | REC-REC | 35dB | 30dB | |
| H/V | 30dB | 25dB | ||
| Switching Voltage | V:10~14.5V H:15~20V | |||
| Power Adapter | IN:100~240V OUT:18V 500mA | |||
| Dimensions (L,W,H) | 196×110×42 | mm | ||
Detail show:
Similar products show:
Model NO.SH216B
Model NO.SH224BX
Very important to dothis:
Before you connect or disconnect the switch, make surethe Receiveriscompletely disconnectedfrom any electricity outlets and has no electric connection.
Even if the button is off on the Receiver , you still need to unplug it. Otherwise it will burn the switch (switch will no longer be useful).
