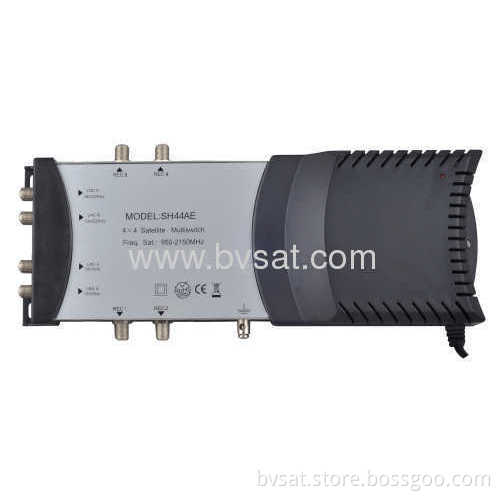

Digital Sat Tv Multiswitch 4 In 4 Receivers Of Stand-alone Series

Product name: Digital Sat TV multiswitch 4 in 4 receivers of stand-alone series

Featrues:

4 satellite IF inputs for 4 satellite receiver
4 satellite IF inputs selected by 13V\18V and 22KHz signal
Low insertion loss, high isolation and return loss
SAT-IF-PATHs to the subscribers are active and supplied by the receiver
Sheet metal housing with plastic holder
Design good for indoor usage

Specifications
Specifications                     Item		Typical	QC Limit	Remark
Frequency Range		SAT:950~2150MHz
Inputs		4 SAT		F connectors
Outputs		4 Receiver		F connectors
Insertion Loss	SAT	0dB	2dB
Return Loss	SAT	12dB	10dB
Stop band attenuation	SAT	25dB	20dB
Isolation	H/V	30dB	25dB
	REC-REC	30dB	25dB
Switching Voltage		V:10~15.2V     H:15.2~20V
Power Supply		IN:90~264V OUT:18V 1200mA
Dimensions (L,W,H)		285×125×70		mm
