Professional Cable Sat Tv 4 X 32 Stand-alone Multiswitch

1.4 satellite IF inputs for 32 satellite receiver

2.Subscribers outputs select trunk signal by 13/18V,0/22kHz and DiSEqC2.0 commands

3.Low insertion loss designed for network with more than 48 subscribers

5.12 satellite IF inputs meet complex SMATV system requirement

6.External high-stability power adaptor (current more than 2 A )

7.Environmental friendly metal housing with plastic holder

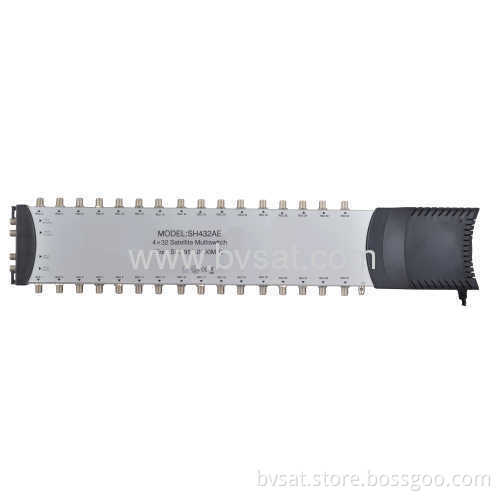

2. Picture:



3. Specification:

Specifications                     Item		Typical	QC Limit	Remark
Frequency Range		SAT:950~2150MHz
Inputs		4 SAT		F connectors
Outputs		32 Receiver		F connectors
Insertion Loss	SAT	6dB	8dB
Return Loss	SAT	12dB	10dB
Stop band attenuation	SAT	25dB	20dB
Isolation	H/V	30dB	25dB
	REC-REC	30dB	25dB
Switching Voltage		V:10~15.2V     H:15.2~20V
Power Supply		IN:90~264V OUT:18V 1200mA
Dimensions (L,W,H)		495×125×70		mm

4. Package:





5. Note:

1. Fast delivery
2. Reliable quality assured
3. Sample order and small quantity is acceptable

6. Other 4 in products:


                                                                                    Model: SH428AE


                                                                                      Model: SH424AE


                                                                                         Model: SH420AE
