Description of International satellite LNB 5 in 4 out receiver multiswitch

1. Features:

1.4 satellite IF and 1 terrestrial TV inputs for 4 satellite receiver
2.4 satellite IF inputs selected by 13V\18V and 22KHz signal
3. Low insertion loss, high isolation and return loss
4.The switch is waterproof
5.Environmental friendly metal housing with plastic holder

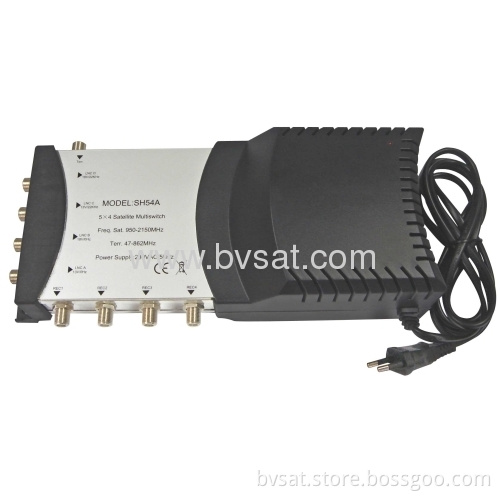

2.Picture:

3. Datasheet:

Specifications Item		Typical	QC Limit	Remark
Frequency Range		Terr.:47~862MHz SAT:950~2150MHz
Inputs		4 SAT+1 Terr.		F connectors
Outputs		4 Receiver		F connectors
Insertion Loss	Terr.	0dB	2dB
Insertion Loss	SAT	4dB	6dB
Return Loss	Terr.	12dB	10dB
Return Loss	SAT	12dB	10dB
Stop band attenuation	Terr.	26dB	25dB
Stop band attenuation	SAT	26dB	25dB
Isolation	H/V	30dB	25dB
Isolation	REC-REC	30dB	25dB
Switching Voltage		V:10~14.5V H:15~20V
Power Supply		IN:90~264V OUT:18V 1200mA
Dimensions (L,W,H)		252×125×70		mm

4.Note:

a. Sample order and small quanlity is acceptable.
b. Reliable quality assured.
c. Professional design group is waiting to serve for you.

5. Package information:

International satellite LNB 5 in 4 out receiver multiswitch

Carton size: cm

A. White box L×W×H ( CM ): 28*13*7.8
B. Carton L×W×H ( CM ): 54*30*42
C. N.W(KGS): 13.4
D. QTY/CTN: 20
E. G.W (KGS): 17.5

6. Related 5 in products:

International satellite LNB 5 in 4 out receiver multiswitch

Model: SH56A

International satellite LNB 5 in 4 out receiver multiswitch

Model: SH58A

International satellite LNB 5 in 4 out receiver multiswitch

Model: SH512A

International satellite LNB 5 in 4 out receiver multiswitch

Model: SH516A

7.Remark:

Promise:

1.We promise to use only the best quality components to ensure the standard of our products.

2.All products are strictly tested by the QC department before shipment.

3.We will process and ship your order ASAP once the payment is verified.

Very important to dothis:

Before you connect or disconnect the switch, make surethe Receiveriscompletely disconnectedfrom any electricity outlets and has no electric connection.

Even if the button is off on the Receiver , you still need to unplug it. Otherwise it will burn the switch (switch will no longer be useful).
