Top Quality Satellite Receivers High Isolation Multiswitches Of 5 X 12 Multiswitch

Product name: Top quality satellite receivers high isolation multiswitches of 5 x 12 multiswitch

1. SH512A features:

a.Excellent quality component, professional circuit design and low loss
b.Applicable to multi-satellite and multi-receiver usage
c.External high-stability power adaptor
d.Environmental friendly metal housing with plastic holder
e.stand extreme weather conditions ranging from -40°C - +60 °C

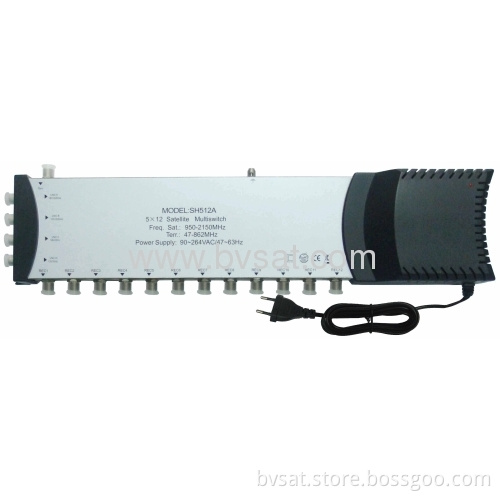

2. Picture show:



3. Datesheet:

Specifications                    Item		Typical	QC Limit	Remark
Frequency Range		Terr.:47~862MHz SAT:950~2150MHz
Inputs		4 SAT+1 Terr.		F connectors
Outputs		12 Receiver		F connectors
Insertion Loss	Terr.	0dB	2dB
	SAT	0dB	2dB
Return Loss	Terr.	12dB	10dB
	SAT	12dB	10dB
Stop band attenuation	Terr.	26dB	25dB
	SAT	26dB	25dB
Isolation	H/V	30dB	25dB
	REC-REC	30dB	25dB
Switching Voltage		V:10~14.5V     H:15~20V
Power Supply		IN:90~264V OUT:18V 1200mA
Dimensions (L,W,H)		462×125×70		mm

4. Package info:





5.Note:

a. Sample order and small quanlity is acceptable.
b. Reliable quality assured.
c. Professional design group is waiting to serve for you.
d. Factory direct sale.

6. Similar 5 in products:



                                                                              Model: SH54A



                                                                               Model: SH56A



                                                                            Model: SH58A



                                                                              Model: SH516A

7. Our carton size:

White box       L×W×H ( CM )

Carton            L×W×H ( CM )

N.W(KGS)

QTY/CTN

G.W (KGS)

CBM/CTN

48*13*7.8

50*28*42

10.2

10

13.8

0.06
