Description of Functional directtv satellite multiswitches of 5 in stand-alone series

1. Basic info of SH56A:

Features:

1. 4 satellite IF and 1 terrestrial TV inputs for 6 satellite receiver
2. 4 satellite IF inputs selected by 13V\18V and 22KHz signal
3. Low insertion loss, high isolation and return loss
4. SAT-IF-PATHs to the subscribers are active and supplied by the receiver
5. Sheet metal housing with plastic holder
6. Design good for indoor usage
7.Applicable to multi-satellite and multi-receiver usage
8. Excellent quality component, professional circuit design

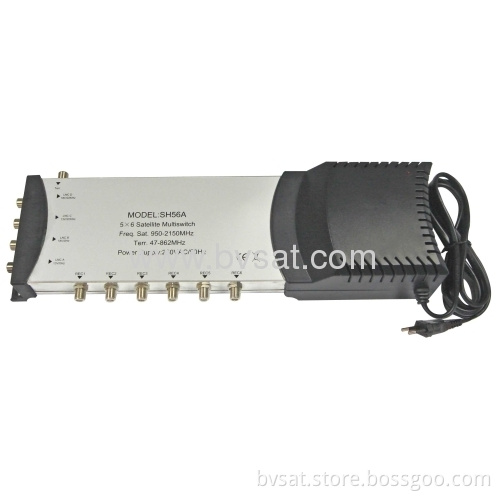

SH56A picture show:



Specifications:

Specifications                    Item		Typical	QC Limit	Remark
Frequency Range		Terr.:47~862MHz SAT:950~2150MHz
Inputs		4 SAT+1 Terr.		F connectors
Outputs		6 Receiver		F connectors
Insertion Loss	Terr.	1dB	3dB
	SAT	4dB	6dB
Return Loss	Terr.	12dB	10dB
	SAT	12dB	10dB
Stop band attenuation	Terr.	26dB	25dB
	SAT	26dB	25dB
Isolation	H/V	30dB	25dB
	REC-REC	30dB	25dB
Switching Voltage		V:10~14.5V     H:15~20V
Power Supply		IN:90~264V OUT:18V 1200mA
