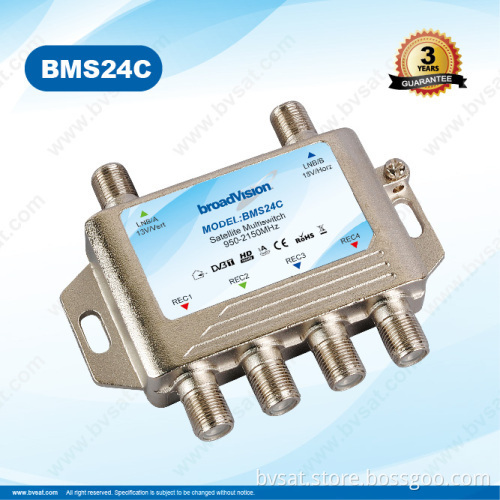

High Technology Multiswitch Series Direct Tv Of Stand-alone 2x4

Product name: high technology multiswitch series direct tv of stand-alone 2x4



Feature of high technology multiswitch series direct tv of stand-alone 2x4

2 satellite IF inputs for 4 satellite receiver.
2 satellite IF inputs selected by 13V/18V signal.
Low insertion loss, high isolation and return loss.
SAT-IF-PATHs to the subscribers are active and supplied by the receiver
Zinc die cast housing, nickel plated.
Design good for indoor usage

Specification:

Item		Typical	QC Limit	Remark
Frequency Range		SAT:950~2150MHz
Inputs		2 SAT		F connectors
Outputs		4 Receiver		F connectors
Insertion Loss	SAT	2dB	4dB
Return Loss	SAT	12dB	10dB
Stop band attenuation	SAT	25dB	20dB
Isolation	H/V	30dB	25dB
	REC-REC	30dB	25dB
Switching Voltage		V:10~15V     H:16~20V
Dimensions (L,W,H)		88×72×16		mm

Application diagram of direcTV multiswitch 2in 4out.

Tips:
1. Use this multiswitch indoor.
2. match good quality Dish and LNB and RG6 Coxial cable.
3. Support 4 subsribers.
4.  suggest the length of RG6 coxial cable less than 100 meter.
5. Grounding when install this products.
6. If you have any question about 2x4 direcTV multiswitch, pls contact with us.

More photo of high quality multiswitch series direct tv of stand-alone 2x4




Package information of direcTV mutiswitch 2x4

Model	QTY/CTN	N. W.( KGS )	G.W. ( KGS )	SIZE ( cm )
BMS24C	100	9.5	10.3	33*23*20
BMS26C	50	9.8	10.3	33*23*20
BMS28C	50	10	11.3	33*23*20
BMS34C	100	9.5	10.8	33*23*20
BMS36C	50	10.3	10.9	33*23*20
BMS38C	50	10.5	11.3	33*23*20
